Mfr Part #:

4678-0-18-15-07-27-10-0

Name: 4678-0-18-15-07-27-10-0
SKU: 4678-0-18-15-07-27-10-0

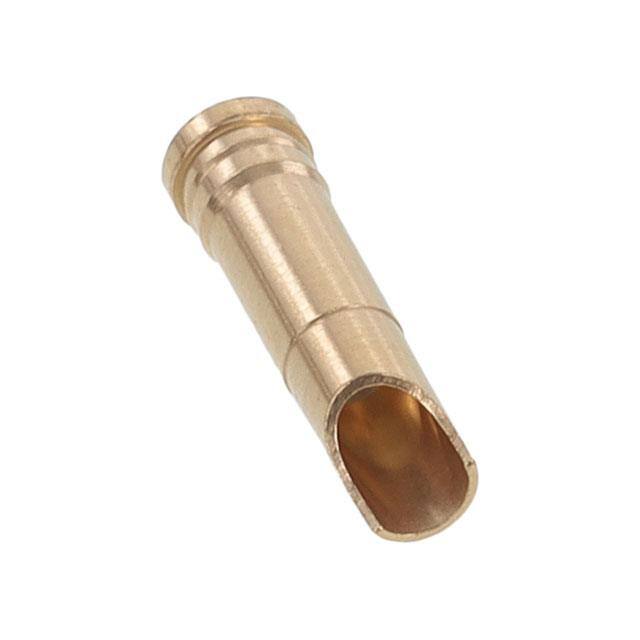

12 AWG SOLDER CUP RECEPTACLE

Stock on Request

4678-0-18-15-07-27-10-0 Description

Short technical summary and product information.

12 AWG SOLDER CUP RECEPTACLE

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Account

Category	PC Pin Receptacles, Socket Connectors
Manufacturer Name	Mill-Max Manufacturing
Accepts Pin Diameter	0.065" ~ 0.082" (1.65mm ~ 2.08mm)
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Contact Material	Beryllium Copper
Flange Diameter	0.156" (3.96mm)
Length	0.585" (14.86mm)
Mounting Hole Diameter	0.143" (3.63mm)
Pin Hole Diameter	0.107" (2.72mm)
Socket Depth	0.275" (6.99mm)
Tail Type	Solder Cup
Termination	Press-Fit
