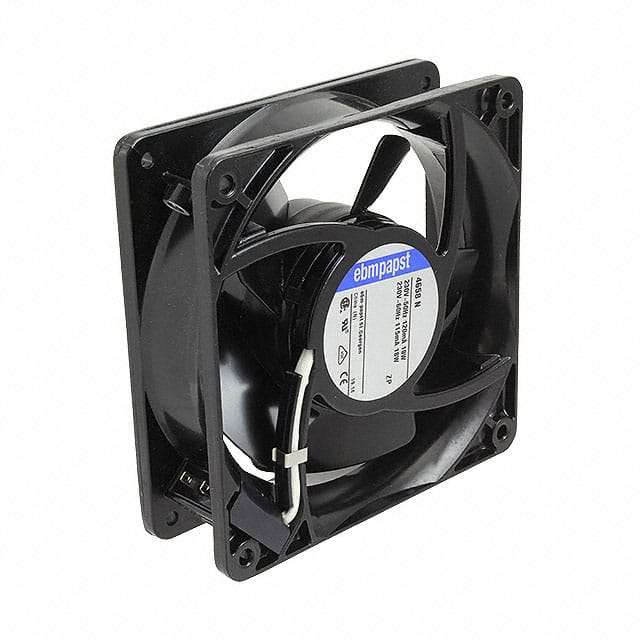

4658N The Ebm-Papst 4658N is an AC tubeaxial fan operating at 230VAC with a frame size of 119x119mm. It delivers 99.9 CFM airflow at 2950 RPM with a noise level of 48dB(A).
Mfr Part #:

4658N

Available from 1 distributors
Mfr Name: Ebm-Papst
Ebm-Papst
The Ebm-Papst 4658N is an AC tubeaxial fan operating at 230VAC with a frame size of 119x119mm. It delivers 99.9 CFM airflow at 2950 RPM with a noise level of 48dB(A).
✓ Total Stock: 25 pcs
$ Price Range: $53.52 - $65.28

4658N Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4658N Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Air Flow
Approval Agency
Bearing Type
Fan Type
Noise
Operating Temperature
Power (Watts)
RPM
SVHC Present
Static Pressure
Termination
Termination Style
Voltage
Weight
Width
View Similar Products (0)

4658N Description

Short technical summary and product information.

The Ebm-Papst 4658N is an AC tubeaxial fan designed for forced air cooling in electronic equipment and industrial ventilation. Operating at 230VAC with a power consumption of 18W, it delivers an airflow of 99.9 CFM (2.80 m³/min) and a static pressure of 90.5 Pa. The fan uses a ball bearing system for reliable long-life operation at 2950 RPM. Noise output is rated at 48.0 dB(A). The frame measures 119mm x 119mm with a thickness of 38mm and features 2-terminal connections. It is approved by CCC, CE, CSA, UL, and VDE, and can operate in ambient temperatures from -40°C to +90°C. The fan weighs approximately 544 g.

4658N Quick Information

Product Type: AC Tubeaxial Fan
Canonical Name: Ebm-Papst 4658N AC Tubeaxial Fan
Subcategory: AC Fans

4658N Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4658N Estimated Pricing

Qty Low High
1+ $65.28 $65.28
10+ $56.24 $56.24
36+ $55.40 $55.40
108+ $53.52 $53.52

Estimated market price range - modelled values for guidance only, not live distributor offers.

4658N Features

  • 230VAC operation with 18W power consumption.
  • Ball bearing design for long life.
  • 99.9 CFM maximum airflow at 2950 RPM.
  • Low noise level of 48.0 dB(A).
  • Compact 119x119mm frame with 38mm thickness.

4658N Applications

  • Cools electronic equipment enclosures effectively.
  • Ideal for ventilation in industrial control panels.
  • Used in telecommunications and server racks.
  • Suitable for general purpose forced air cooling.

4658N FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage of the 4658N?

The 4658N operates at 230 VAC.

What is the operating temperature range?

The fan can operate from -40°C to +90°C.

Is the 4658N RoHS compliant?

It is marked as RoHS3 compliant, but this status is unverified with low confidence.

What are the dimensions of the 4658N?

The fan has a frame size of 119mm x 119mm and a width (thickness) of 38.00mm.

How much airflow does the 4658N provide?

It provides 99.9 CFM (2.80 m³/min) of airflow.

What is the noise level of the 4658N?

The noise level is 48.0 dB(A).

What safety approvals does the 4658N have?

It is approved by CCC, CE, CSA, UL, and VDE.
