| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Termination | |
| Color | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Features | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Row Spacing | |
| Termination Style | |
| Wire Gauge | |
| Wire Type |

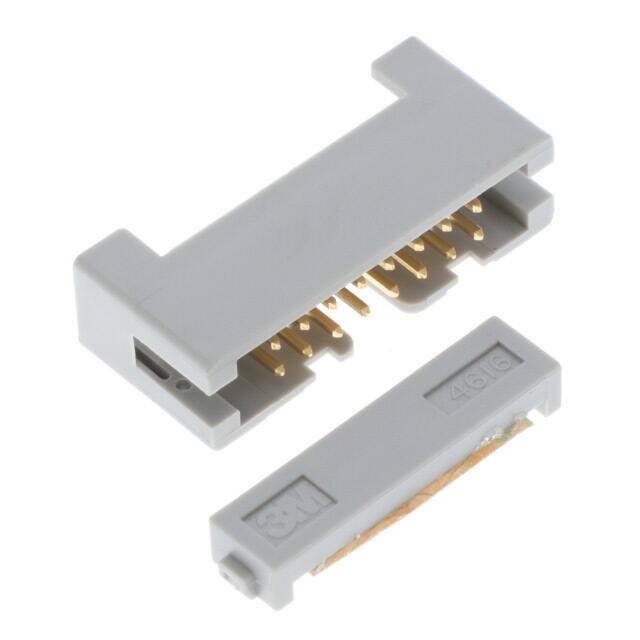

The 3M 4616-6001 is a 16-position IDC (Insulation Displacement Connector) plug designed for discrete or ribbon cable with 26-28 AWG stranded or solid wire. It features a 2.54mm pitch and 2.54mm row spacing, with male pin contacts that have a gold finish of 0.76µm (30.0µin). The connector is free hanging (in-line) and terminates cable via IDC, making it suitable for quick and reliable wire-to-board connections. The gray plug body includes a feed-through feature for pass-through wiring. This connector is commonly used in internal wiring harnesses, computer peripherals, and industrial control systems where space and reliability are critical.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.98 | $6.98 |
| 10+ | $6.47 | $6.47 |
| 25+ | $6.39 | $6.39 |
| 50+ | $5.94 | $5.94 |
| 100+ | $5.75 | $5.75 |
| 250+ | $5.38 | $5.38 |
| 400+ | $5.24 | $5.24 |
| 1,200+ | $4.69 | $4.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
16 positions in 2 rows.
2.54mm (0.100").
26-28 AWG for stranded or solid wire.
Gold finish with a thickness of 0.76µm (30.0µin).
Free hanging (in-line) mounting.
Yes, it includes a feed-through feature.
IDC (Insulation Displacement Connector) termination.
