| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

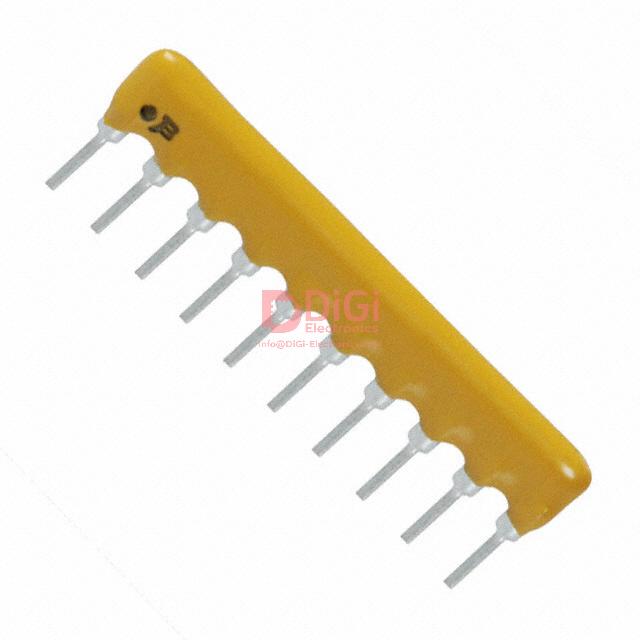

The Bourns 4610X-101-471LF is a resistor network/array with a bussed circuit type. It contains 9 individual resistors, each rated at 470 Ohms with a tolerance of ±2%. The power dissipation per element is 200mW, and it operates within a temperature range of -55°C to 125°C, with a temperature coefficient of ±100ppm/°C.
This component is designed for through-hole mounting and comes in a 10-SIP package. It has 10 pins in total. The dimensions are 25.35mm in length, 2.49mm in width, and 5.08mm in height.
Key electrical specifications include its 470 Ohm resistance and ±2% tolerance. The device is suitable for applications requiring a compact resistor array with reliable performance within a specified temperature range.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 470 Ohms.
The tolerance is ±2%.
There are 9 resistors in the network.
The operating temperature range is -55°C to 125°C.
It uses Through Hole mounting.
The package type is 10-SIP.
