| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Circuit Type | |
| Height | |
| Lead Spacing | |
| Length | |
| Mounting Type | |
| Number of Pins | |
| Number of Resistors | |
| Operating Temperature | |
| Power Per Element | |
| Resistance (Ohms) | |
| Supplier Device Package | |
| Tape & Reel | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

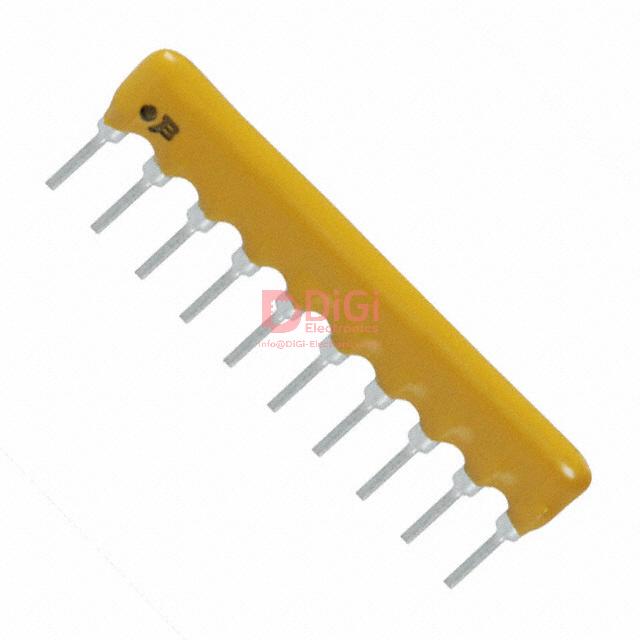

The Bourns 4610X-101-153LF is a resistor network designed for through-hole mounting. It comprises 9 individual resistors, each with a resistance value of 15k Ohm and a tolerance of ±2%. The power rating per element is 200mW, and the temperature coefficient is ±100ppm/°C.
This network operates within a temperature range of -55°C to 125°C. It features a bussed circuit type and is supplied in a 10-SIP package. The dimensions of the component are approximately 25.35mm in length and 2.49mm in width, with a seated height of 5.08mm.
Key electrical specifications include a 10-pin configuration, making it suitable for various electronic applications requiring integrated resistor arrays. The through-hole mounting type ensures secure placement on printed circuit boards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 15k Ohm.
The tolerance is ±2%.
There are 9 resistors in this network.
The power per element is 200mW.
The operating temperature range is -55°C to 125°C.
It is in a 10-SIP package.
The mounting type is Through Hole.
