| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,100 pcs
|
2100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Inductance | |
| Lead Style | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Type |

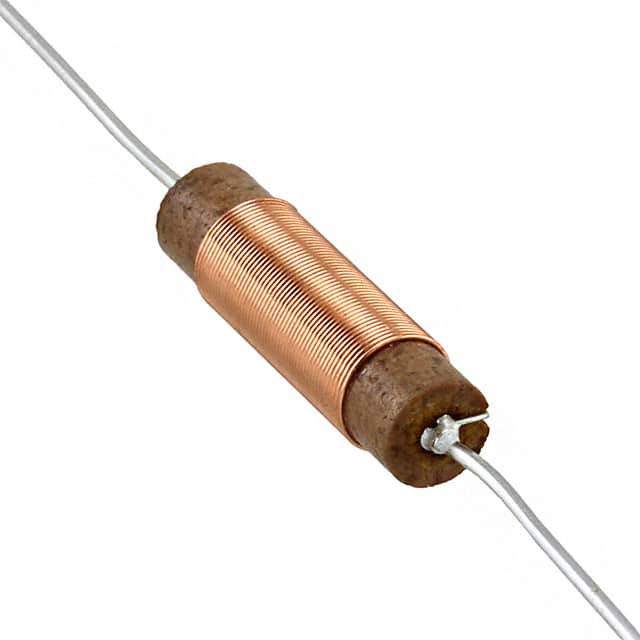

The Bourns 4608-RC is a fixed wirewound inductor from the 4600 series, offering an inductance of 3.9µH with ±20% tolerance. It has a maximum DC resistance of 450mOhm and a current rating of 1A (based on 35°C temperature rise). The inductor features a high Q factor of 60 at 7.96MHz and a minimum self-resonant frequency of 93MHz, making it suitable for RF and high-frequency applications. The component is packaged in an axial through-hole format with dimensions 0.270" diameter x 0.750" length (6.86mm x 19.05mm). The core is made of phenolic material and the inductor is unshielded. It operates over -55°C to 125°C temperature range. RoHS compliant and lead-free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.95 | $1.95 |
| 10+ | $1.61 | $1.61 |
| 25+ | $1.40 | $1.40 |
| 100+ | $1.32 | $1.32 |
| 300+ | $1.21 | $1.21 |
| 600+ | $1.13 | $1.13 |
| 1,200+ | $1.06 | $1.06 |
| 2,700+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3.9 µH with ±20% tolerance.
1 A maximum, based on 35°C temperature rise.
450 mOhm maximum.
93 MHz minimum.
Axial through-hole package, 0.270" diameter x 0.750" length (6.86mm x 19.05mm).
60 minimum.
-55°C to 125°C.
