| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Application | |
| Color | |
| Contact Material | |
| Contact Plating - Mating | |
| Contact Plating - Termination | |
| Failure Rate | |
| Flammability Rating | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Lock to Mating Part | |
| Mating Cycles | |
| Net Weight | |
| Number of Circuits | |
| Number of Rows | |
| Orientation | |
| Packaging Type | |
| Pitch | |
| Plating Thickness Mating | |
| Plating Thickness Termination | |
| Polarized to Mating Part | |
| Polarized to PCB | |
| Recommended PCB Thickness | |
| SVHC Present | |
| Shrouded | |
| Storage Temperature | |
| Tail Length |

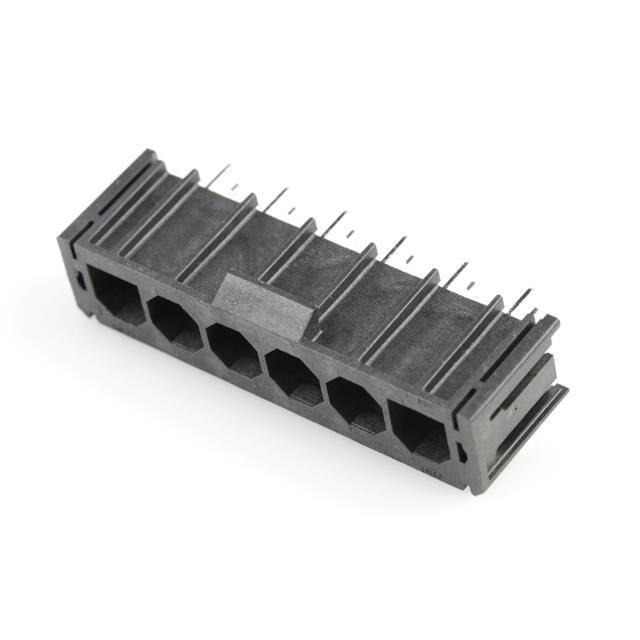

The Molex 46007-1106 is a Sabre series power connector header designed for wire-to-board applications. It features 6 circuits arranged in a single row with a 7.50mm pitch, providing a compact yet robust power interconnect solution. The header is fully shrouded and polarized to both the mating part and the PCB, ensuring correct orientation and secure mating. A locking mechanism to the mating part adds retention reliability.
This right-angle header is constructed with a black high-temperature thermoplastic insulator rated UL 94V-0 for flammability resistance. Contacts are made of brass with tin plating on both mating and termination surfaces, offering good conductivity and solderability. The tail length is 3.81mm and the recommended PCB thickness is 1.60mm.
The part is glow-wire compliant per IEC 60335-1 and is rated for 25 mating cycles. It is packaged in a tray and is RoHS compliant. The Sabre series is suitable for power distribution in appliances, industrial equipment, and similar applications requiring a reliable, high-current interconnect.
The pitch is 7.50 mm.
It has 6 circuits.
Yes, it is polarized to both the mating part and the PCB.
The flammability rating is 94V-0.
Yes, it is RoHS compliant.
It is packaged in a tray.
Contacts are brass with tin plating on both mating and termination surfaces.
