| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
56 pcs
|
56 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Durability (mating cycles max) | |
| Flammability | |
| Glow-Wire Compliant | |
| Keying to Mating Part | |
| Lock to Mating Part | |
| Material - Metal | |
| Material - Plating Mating | |
| Material - Plating Termination | |
| Net Weight | |
| Number of Circuits | |
| Number of Rows | |
| Orientation | |
| PC Tail Length | |
| PCB Thickness Recommended | |
| Packaging Type | |
| Pitch - Mating Interface | |
| Plating min Mating | |
| Plating min Termination | |
| Polarized to Mating Part | |
| Polarized to PCB | |
| Shrouded | |
| Tape & Reel |

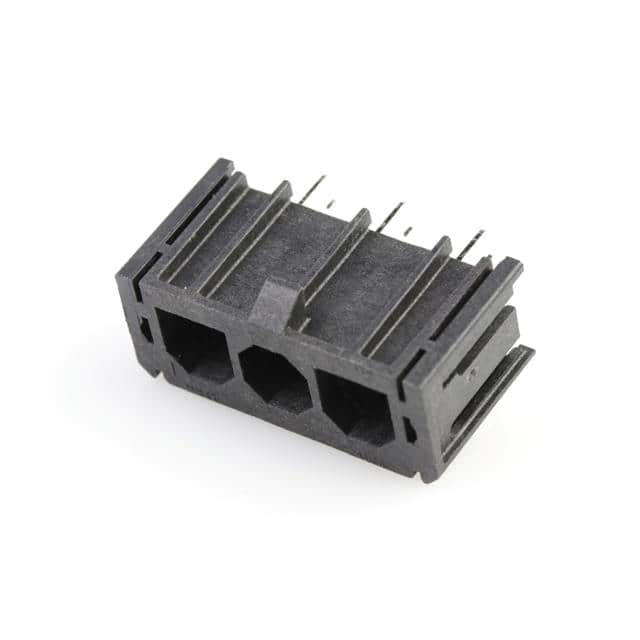

The Molex 46007-1103 is a 7.50mm pitch Sabre header from the 46007 series. It is a right angle, single-row header with 3 circuits, fully shrouded and polarized for secure mating. The header features keying and locking to the mating part, ensuring reliable connections in power applications. The contacts are made of brass with tin plating on both mating and termination surfaces, with a minimum plating thickness of 0.889 µm. The header has a durability of 25 mating cycles and is recommended for use with a 1.60mm PCB thickness. The PC tail length is 3.81mm. The housing is made of black resin with a flammability rating of 94V-0 and is glow-wire compliant. The net weight is 4.200 g. The packaging is tray. This header is suitable for wire-to-board power applications and complies with UL 1977 finger proof access requirements.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.16 | $2.16 |
| 10+ | $1.88 | $1.88 |
| 25+ | $1.80 | $1.80 |
| 100+ | $1.68 | $1.68 |
| 300+ | $1.52 | $1.52 |
| 600+ | $1.40 | $1.40 |
| 1,200+ | $1.25 | $1.25 |
| 2,700+ | $1.17 | $1.17 |
| 5,100+ | $1.12 | $1.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3 circuits.
7.50 mm.
Right angle.
Yes, polarized to mating part and to PCB.
Yes, it is glow-wire compliant per IEC 60695-2-12 and IEC 60695-2-13, suitable for household appliance safety.
1.60 mm.
25 mating cycles maximum.
