| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
503 pcs
|
503 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Inductance | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| SVHC Present | |
| Shielding | |
| Tolerance | |
| Type |

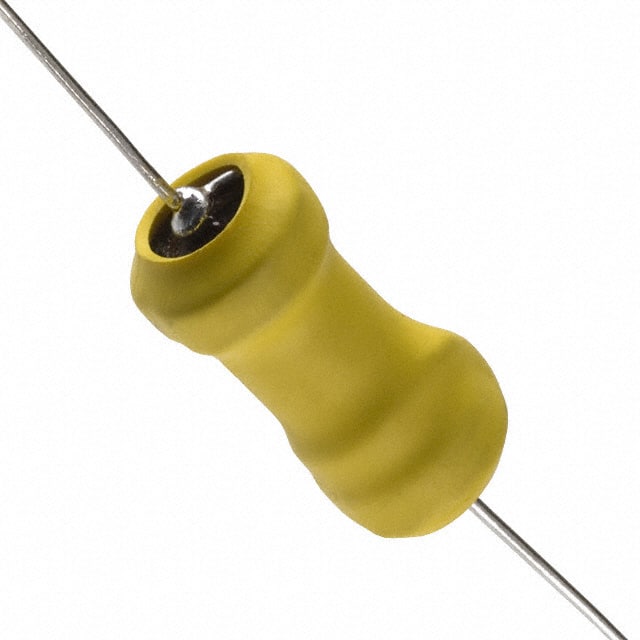

The API Delevan Inc. 4590-155K is a drum core, wirewound fixed inductor designed for through-hole mounting. It offers an inductance value of 1.5 mH with a tight tolerance of ±10%. This unshielded inductor is rated for a current of 750 mA and has a maximum DC resistance of 1.18 Ohms.
Operating within a temperature range of -55°C to 125°C, the 4590-155K is constructed with a ferrite material. Its axial package measures 0.455 inches in diameter by 0.900 inches in length. The component is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
This fixed inductor is suitable for applications requiring stable inductance and current handling capabilities. Its through-hole design facilitates easy integration into circuit boards for various electronic designs.
The inductance of the 4590-155K is 1.5 mH.
The current rating for the 4590-155K is 750 mA.
The maximum DC Resistance (DCR) for the 4590-155K is 1.18 Ohms.
The tolerance for the 4590-155K is ±10%.
The operating temperature range for the 4590-155K is -55°C to 125°C.
The 4590-155K is designed for through-hole mounting.
The 4590-155K is a drum core, wirewound fixed inductor.
