| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Abrasion Resistance | |
| Adhesion To Polypropylene (Typical @ 15 Minute Dwell to polypropylene (Avg.) | |
| Adhesion To Polypropylene (Typical @ Ultimate Dwell to polypropylene (72 Hrs.) (Avg.) | |
| Adhesion To Powder Coated Metal (Typical @ 15 Minute Dwell to Powder Coated Metal (Avg.) | |
| Adhesion To Powder Coated Metal (Typical @ Ultimate Dwell to Powder Coated Metal (72 Hrs.) (Avg.) | |
| Adhesion To Steel (Typical @ 15 Minute Dwell to stainless steel (Avg.) | |
| Adhesion To Steel (Typical @ Ultimate Dwell to stainless steel (72 Hrs.) (Avg.) | |
| Application Specifics | |
| Application Temperature | |
| Applications | |
| Arrangement | |
| Color | |
| Features | |
| Gloss | |
| Language | |
| Legend (Text) | |
| Length | |
| Location | |
| Material | |
| Mounting Type | |
| Outdoor Durability | |
| Print Type | |
| Service Temperature | |
| Shape | |
| Storage Temperature | |
| Tack | |
| Tape & Reel | |
| Thickness | |
| Width |

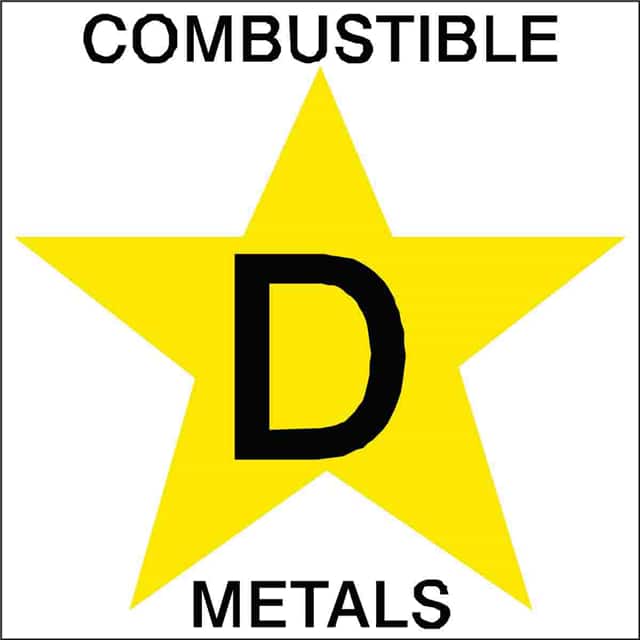

The Brady B-946 marking film, identified by part number 45196, is a durable and flexible vinyl label suitable for indoor and outdoor applications. It features a high gloss finish and pressure-sensitive adhesive for secure mounting.
This label is pre-printed with the legend 'D. Combustible Metals' in English, arranged with both symbol and text. Its dimensions are 1.5 inches by 1.5 inches (38.10mm x 38.10mm). The material is vinyl, and it is designed for facility applications, specifically as a notice.
Key specifications include a total thickness of 0.102mm (0.004 inches), adhesion to steel up to 93 N/100mm, and tack of 10.5 N. It offers abrasion resistance up to 350 cycles and a gloss level of 50 Gardner Units. The application temperature is a minimum of 0°F (-18°C), with a service temperature range of -40°F to 180°F (-40°C to 82°C). Average outdoor durability is estimated at 8-10 years.
Chemical resistance data indicates no effect from common acids, bases, and oils, though it failed tests with Methyl Ethyl Ketone, Acetone, Methanol, IPA, Toluene, Mineral Spirits, Glacial Acetic Acid, Diesel Fuel, Heptane, Turpentine, Kerosene, and Gasoline under specific test conditions. It is not recommended for adhesion to bare concrete or unpainted wood.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The service temperature range for the Brady 45196 label is -40°F to 180°F (-40°C to 82°C).
The Brady 45196 label is 1.5 inches by 1.5 inches (38.10mm x 38.10mm).
The Brady 45196 label is made from vinyl film.
The average outdoor durability of the Brady 45196 label is estimated to be 8-10 years.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is Level 1.
