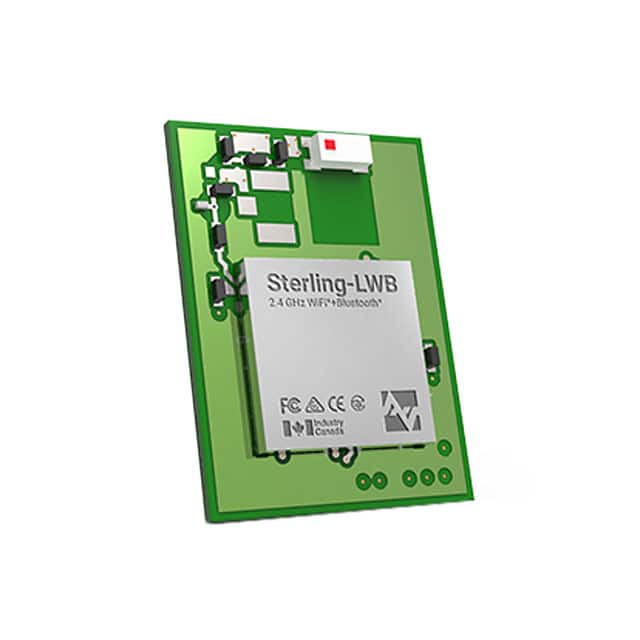

The Laird Connectivity 450-0152C, also known as the Sterling-LWB module, is a high-performance 2.4 GHz WLAN and Bluetooth combo module. It is based on the Broadcom BCM4343W SoC and supports IEEE 802.11 b/g/n standards for WiFi and Bluetooth v4.2 BR/DR/LE.
This module features an integrated chip antenna and is suitable for surface mount applications. It operates within a voltage range of 3.0V to 3.6V and an industrial temperature range of -40°C to +85°C. Key electrical specifications include typical WLAN transmit power up to +17.5 dBm and sensitivity down to -88 dBm, with a data rate of up to 65Mbps.
Designed for flexibility, the Sterling-LWB module offers two footprint styles: an easy-to-integrate 15.5 mm x 21 mm and a miniature 10 mm x 10 mm. It supports serial interfaces like SDIO and UART, facilitating integration into various IoT and M2M connectivity solutions. The module also boasts worldwide country certifications, including FCC, IC, ETSI, Giteki, and RCM.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 450-0152C module operates from 3.0V to 3.6V and has an operating temperature range of -40°C to +85°C.
This module supports IEEE 802.11 b/g/n for WiFi and Bluetooth v4.2 BR/DR/LE.
For 802.11n (HT20 MCS7), the typical transmit power is +12.5 dBm and the typical sensitivity is -72 dBm.
The module is available in an 'Easy to Integrate' 15.5 mm x 21 mm footprint and a 'Miniature' 10 mm x 10 mm footprint.
Yes, the module is available with an integrated chip antenna or a U.FL connector for an external antenna.
