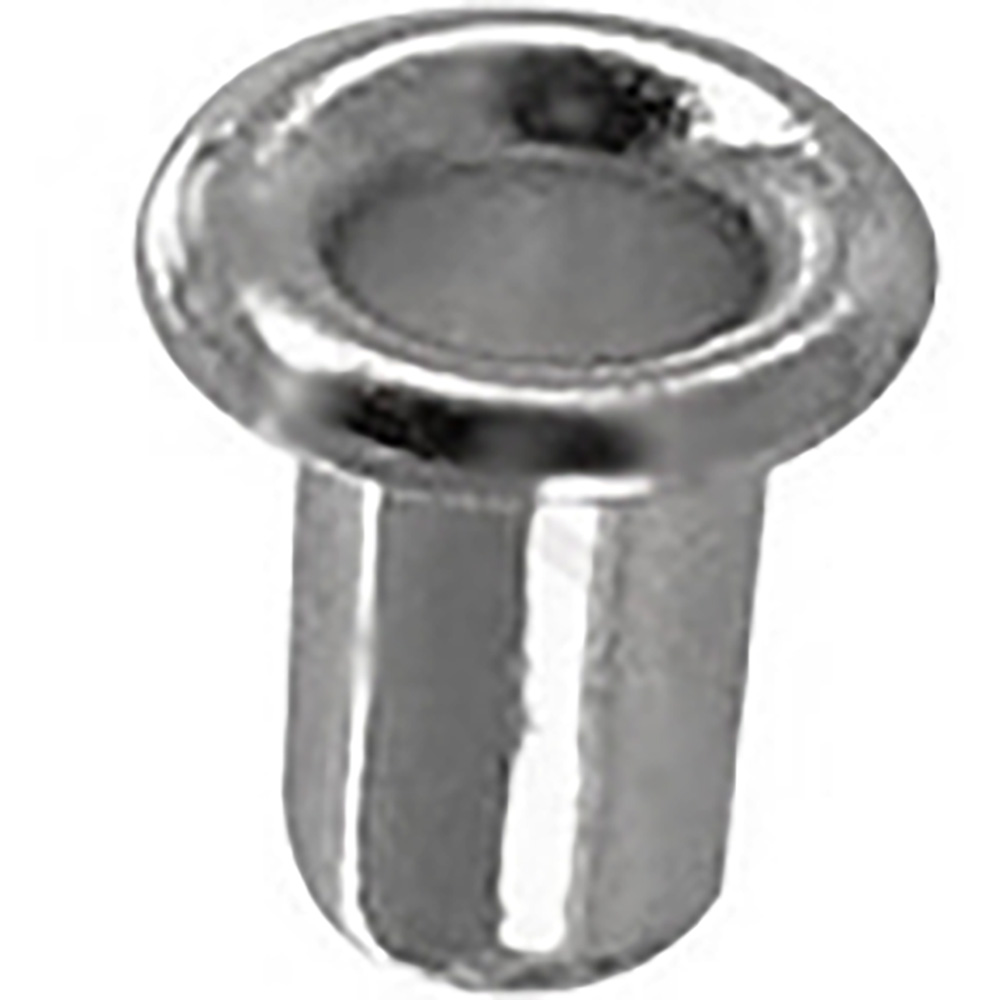

45 Keystone Electronics 45 is a brass tin plated eyelet with a 0.156" rivet length and 0.200" head diameter. It requires a staking tool for installation.
Mfr Part #:

45

Available from 1 distributors
Mfr Name: Keystone Electronics
Keystone Electronics
Keystone Electronics 45 is a brass tin plated eyelet with a 0.156" rivet length and 0.200" head diameter. It requires a staking tool for installation.
✓ Total Stock: 114 pcs

45 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
114 pcs
On Request
114 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

45 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Features
Head Diameter
Hole Diameter
Material
Mounting Type
Rivet Diameter
Rivet Length
SVHC Present
Tape & Reel
Termination Style
Type
View Similar Products (0)

45 Description

Short technical summary and product information.

The Keystone Electronics 45 is a brass eyelet with a bright electro tin plating per MIL-T-10727. It is designed for use in PC board and electronic assembly applications. The eyelet has a rivet diameter of 0.121" (3.07 mm) and a rivet length of 0.156" (3.96 mm). The head diameter is 0.200" (5.08 mm) and it is intended for a mounting hole diameter of 0.125" (3.18 mm), which is a 1/8" hole.



This component is a through-hole mounting eyelet that requires a staking tool for installation. The material is brass with a tin plated finish. The part is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified.

45 Quick Information

Product Type: Eyelet
Series: 45
Canonical Name: Keystone Electronics 45 Brass Tin Plated Eyelet
Subcategory: Rivets

45 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

45 Features

  • Brass construction with tin plating.
  • 0.156 inch rivet length.
  • 0.200 inch head diameter.
  • Requires staking tool for installation.
  • RoHS3 compliant and REACH unaffected.

45 Applications

  • For PC board and electronic assembly.
  • Used in through-hole mounting applications.
  • Suitable for attaching components to panels.

45 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the rivet length of the Keystone 45 eyelet?

The rivet length is 0.156" (3.96 mm).

What is the head diameter of the Keystone 45 eyelet?

The head diameter is 0.200" (5.08 mm).

What material is the Keystone 45 eyelet made from?

It is made from brass with a tin plated finish.

What mounting hole size is required for the Keystone 45 eyelet?

The recommended mounting hole diameter is 0.125" (3.18 mm), which is a 1/8" hole.

Does the Keystone 45 eyelet require a tool for installation?

Yes, it requires a staking tool for installation.

What is the rivet diameter of the Keystone 45 eyelet?

The rivet diameter is 0.121" (3.07 mm).

Is the Keystone 45 eyelet RoHS compliant?

The part is listed as RoHS3 compliant, though this is unverified.
