| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Style | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Output Connector | |
| Output Voltage | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

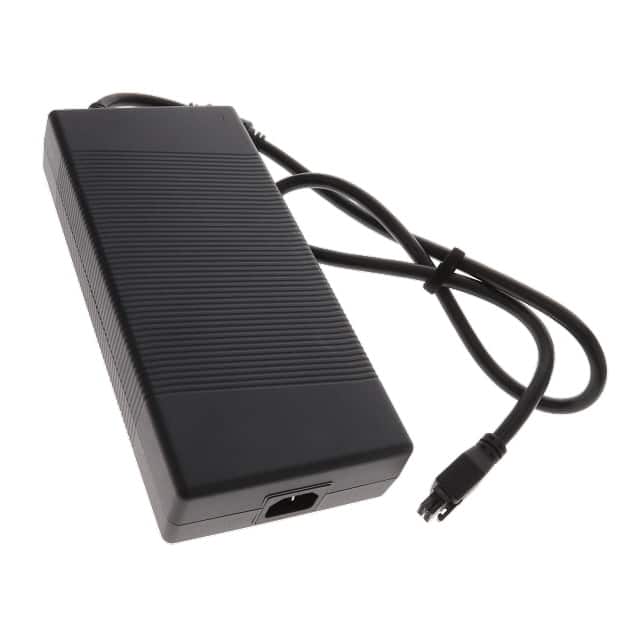

The Ideal Power Ltd. 44ATM300T-P240 is a 300W AC/DC desktop power supply designed for reliable performance. It features a single output of 24V DC at 12.5A, delivering consistent power with low ripple noise.
This power supply meets Energy Efficiency Level VI standards and is suitable for medical applications, complying with IEC/EN/ANSI/AAMI ES 60601-1 and IEC60601-1-2 standards. It offers universal input voltage compatibility from 100-240 VAC at 50/60Hz.
Key features include a compact desktop form factor, IEC C14 input connector, and an 8-pin Molex output connector. The unit is built with a fully enclosed plastic case and has dimensions of 254mm x 116mm x 47mm, weighing 1600g. It also includes safety features such as 2x MOPP and a touch current of less than 100µA.
The 44ATM300T-P240 provides a 24V DC output at 12.5A.
The power rating for this unit is 300W.
This power supply meets Energy Efficiency Level VI.
Yes, this power supply is medically approved and designed for use in medical applications.
The input voltage range is 100-240 VAC, and the frequency range is 50/60 Hz.
It uses an IEC 320-C14 input connector.
The dimensions are 254mm x 116mm x 47mm.
