| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cable Length | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Output Connector | |
| Power | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

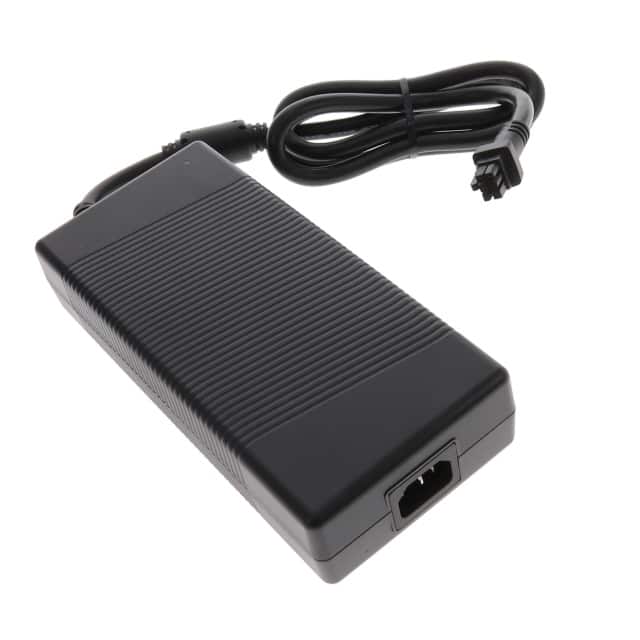

The Ideal Power Ltd. 44ATM250T-P240 is a 250W AC/DC desktop power supply designed for reliable performance in demanding applications. It provides a single 24V DC output at 10.4A.
This power supply features a universal input range of 100-240VAC at 50/60Hz and meets Energy Efficiency Level VI standards, ensuring reduced energy consumption. It is equipped with an IEC 320-C14 input connector and a 6-pin Molex output connector.
Designed for medical applications, the 44ATM250T-P240 complies with IEC/EN/ANSI/AAMI ES 60601-1 standards and features 2x MOPP means of protection. It also holds numerous safety approvals including cULus, UKCA, CB, PSE, FCC, CE, and TUV.
With a compact desktop form factor, dimensions of 204mm x 94mm x 43.5mm, and a weight of 1145g, this power supply is suitable for integration into various systems where space and stability are critical.
The output is 24 VDC at 10.4 A.
It accepts 90-264 VAC at 47-63 Hz.
250 W.
It complies with IEC/EN/ANSI/AAMI ES 60601-1 (Edition 3.1) with 2 x MOPP means of protection.
Level VI, with no-load power consumption less than 0.21 W.
Desktop adapter with IEC 320-C14 input connector and 6 Pin Molex 39-01-2060 output connector.
204 x 94 x 43.5 mm, weighing 1145 g.
