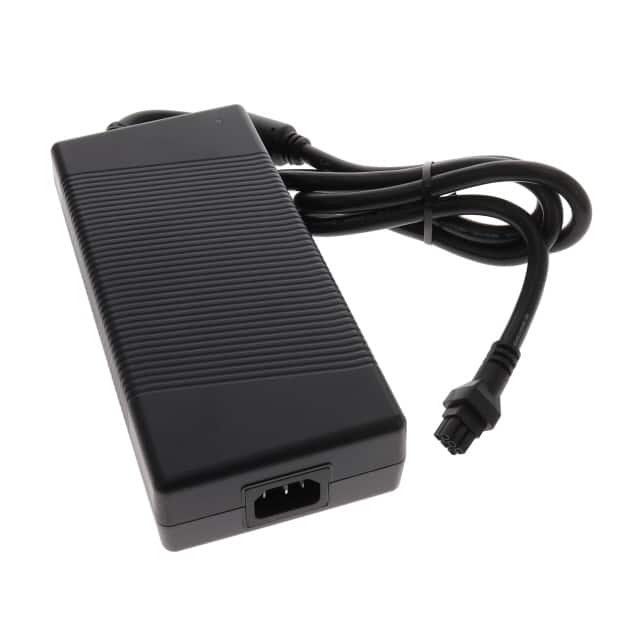

The Ideal Power Ltd. 44ATM250T-P150 is a 250W AC/DC desktop power supply designed for reliable performance. It features a universal input voltage range of 100-240 VAC and provides a regulated 15V DC output at 16.66A.
This power supply meets Energy Efficiency Level VI standards and has a low no-load power consumption of less than 0.21W. It includes an IEC 320-C14 input connector and a 6-pin Molex output connector. The unit is housed in a fully enclosed plastic case with dimensions of 204mm x 94mm x 43.5mm.
Designed for demanding applications, the 44ATM250T-P150 is approved for medical use and complies with safety standards such as IEC/EN/ANSI/AAMI ES 60601-1 and EMC standards IEC60601-1-2. It also holds multiple safety approvals including cULus, UKCA, CB, PSE, FCC, CE, and TUV.
Key features include a power indicator LED, a 1200mm cable, and protection features like over-voltage and over-current protection. Its robust design and medical approval make it suitable for various medical and industrial equipment.
The output voltage is 15V DC.
The maximum output current is 16.66A.
The input voltage range is 100-240 VAC.
Yes, it meets Energy Efficiency Level VI.
It uses an IEC 320-C14 input connector.
Yes, it is approved for medical applications with 2x MOPP means of protection.
The dimensions are 204mm x 94mm x 43.5mm.
