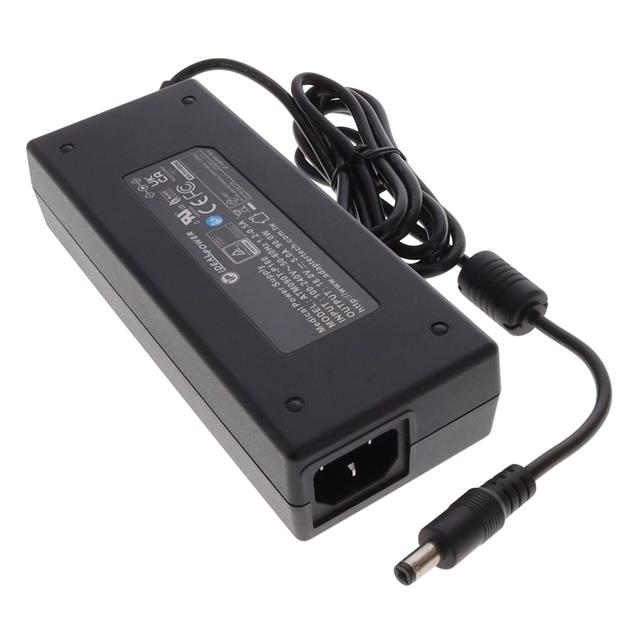

This Ideal Power Ltd. 44ATM090T-P180 is a 90W AC/DC desktop power adapter designed for medical applications. It features a universal input voltage range of 100-240VAC at 50/60Hz and provides a regulated 18V DC output with a maximum current of 5A.
The adapter complies with Energy Efficiency Level VI standards, ensuring low no-load power consumption of less than 0.21W. It utilizes an IEC 320-C14 input connector and a standard 2.1x5.5x11.0mm barrel plug for output. The unit is built with a fully enclosed plastic case and has dimensions of 160mm x 64mm x 35mm, weighing 460g.
Safety and performance are assured with approvals including CB, CE, cULus, FCC, PSE, TUV, and UKCA. It meets IEC/EN/ANSI/AAMI ES 60601-1 (ED 3.1) and EMC: IEC60601-1-2:2014 (ED 4.0) standards, offering 2x MOPP means of protection and a touch current of less than 100µA. Protection features include auto-recovery over-current protection and latch-off over-voltage protection.
The 44ATM090T-P180 provides an 18V DC output voltage at a maximum current of 5A.
This adapter has an output power rating of 90W.
The adapter supports a universal input voltage range of 100 to 240VAC.
Yes, it meets Energy Efficiency Level VI standards.
The adapter uses an IEC 320-C14 input connector.
The dimensions are 160mm in length, 64mm in width, and 35mm in height.
Yes, this product is suitable for use in medical applications and meets relevant safety standards.
