| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cable Length | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Housing Material | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Weight | |
| Width |

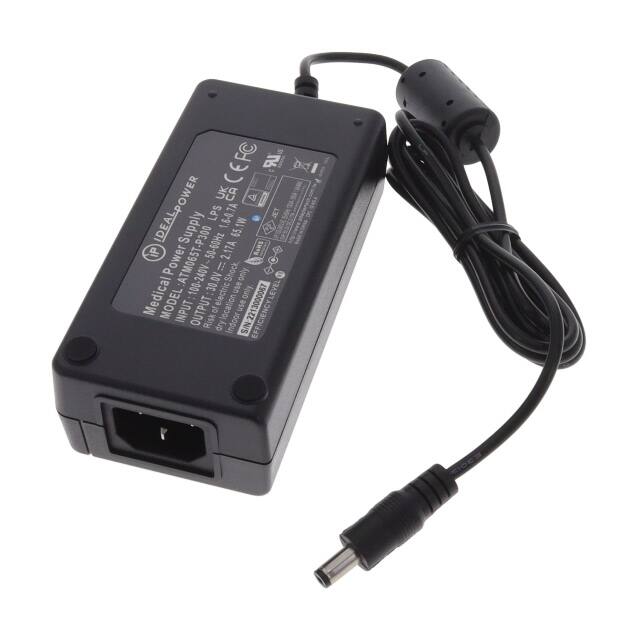

The Ideal Power 44ATM065T-P300 is a 65.1W AC/DC desktop power supply designed for medical applications. It provides a single output of 30V DC at 2.17A, with a universal input voltage range of 100-240 VAC.
This power supply meets Energy Efficiency Level VI standards and is compliant with IEC/EN/ANSI/AAMI ES 60601-1 and IEC60601-1-2. It is medically approved and suitable for use in surgical, therapeutic, and diagnostic machinery.
The unit features an IEC 320-C14 input connector and a standard 2.1x5.5x11.0mm output connector with a positive center pin. Its dimensions are 119mm x 60mm x 36mm, and it weighs 350g. The power supply includes safety approvals from cULus, UKCA, CB, PSE, FCC, CE, and TUV.
100-240 VAC at 50/60 Hz.
Desktop adapter with fully enclosed plastic case.
IEC/EN/ANSI/AAMI ES 60601-1 (ED 3.1) for medical safety and IEC 62368-1 for IT/AV equipment.
30 VDC at 2.17 A (65.1 W).
Level VI with no-load power consumption less than 150 mW.
300,000 hours at 25°C.
IEC 320-C14 input connector and 2.1x5.5x11.0mm output connector with 1500mm cable.
