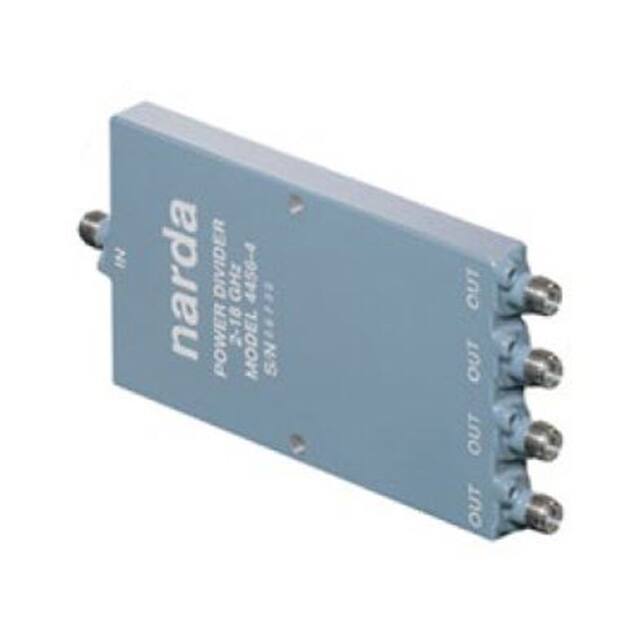

4456-4 The Narda-MITEQ 4456-4 is a 4-way power divider designed for a frequency range of 2 GHz to 18 GHz. It features a maximum insertion loss of 1.8 dB and a minimum isolation of 20 dB.
Mfr Part #:

4456-4

Available from 1 distributors
Mfr Name: L3 Narda-MITEQ
L3 Narda-MITEQ
The Narda-MITEQ 4456-4 is a 4-way power divider designed for a frequency range of 2 GHz to 18 GHz. It features a maximum insertion loss of 1.8 dB and a minimum isolation of 20 dB.
✓ Total Stock: 5 pcs
$ Price Range: $0.99

4456-4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

4456-4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Approval Agency
Automotive Grade
Connector Type
Frequency
Height
Industrial Grade
Insertion Loss
Isolation
Lead Spacing
Length
Medical Grade
Military Grade
Specifications
Storage Temperature
Tape & Reel
Width
View Similar Products (0)

4456-4 Description

Short technical summary and product information.

This 4-way power divider from Narda-MITEQ, model 4456-4, operates across a broad frequency range from 2 GHz to 18 GHz. It is engineered for reliable performance with a maximum insertion loss of 1.8 dB and a minimum isolation of 20 dB between output ports.



The device offers excellent amplitude and phase balance, with a maximum amplitude balance of +/- 0.8 dB and a maximum phase balance of +/- 10 degrees. It supports an average power rating of 30 W. The input VSWR is a maximum of 1.5:1, and the output VSWR is a maximum of 1.4:1.



Constructed in a module package, the 4456-4 has dimensions of 49.27mm in length, 87.57mm in width, and 9.64mm in height. It is designed with SMA (F) connectors. This power divider is suitable for applications requiring signal splitting within the specified microwave frequency bands.

4456-4 Quick Information

Product Type: Power Divider
Canonical Name: 4456-4 4-Way Power Divider
Subcategory: RF Power Dividers/Splitters

4456-4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4456-4 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

4456-4 Features

  • 4-way power divider for 2 GHz to 18 GHz.
  • Maximum insertion loss of 1.8 dB.
  • Minimum isolation of 20 dB.
  • Handles 30 W average power.
  • Module package with SMA connectors.

4456-4 Applications

  • Used for RF signal splitting.
  • Suitable for microwave frequency systems.
  • Ideal for test and measurement setups.
  • Integrates into communication systems.

4456-4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the frequency range of the 4456-4?

2 GHz to 18 GHz.

What is the insertion loss of the 4456-4?

1.8 dB.

What is the minimum isolation of the 4456-4?

20 dB.

What connector type does the 4456-4 use?

SMA (F).

What is the maximum input VSWR for the 4456-4?

1.5:1.

What is the maximum output VSWR of the 4456-4?

1.4:1.

What is the average power handling capacity of the 4456-4?

30 W.
