| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

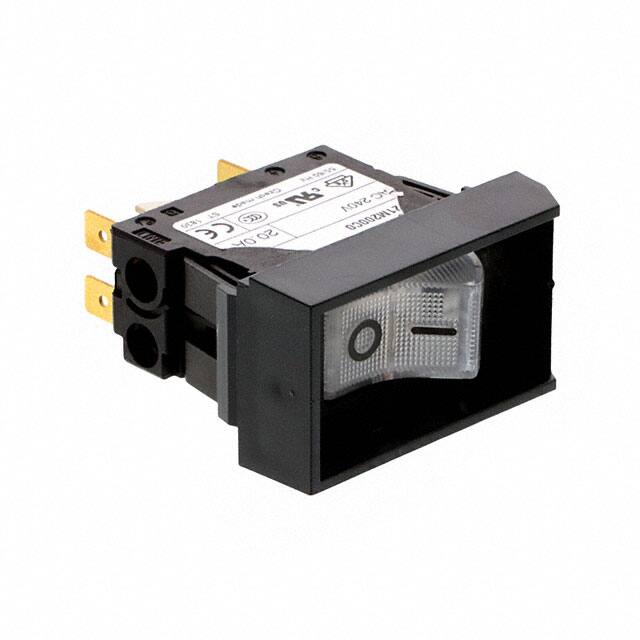

The Schurter Inc. 4439.0001 is a thermal circuit breaker designed for equipment protection. It offers 2-pole configuration with a rated current of 20A and a rated AC voltage of 240V, along with a DC voltage rating of 60V.
This breaker features a thermal tripping mechanism and a rocker actuation type, suitable for panel mounting. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -10°C to 55°C. The degree of protection is IP40 on the front side.
Applications for this circuit breaker include power tools, industrial appliances, power supplies, and equipment for construction and cleaning. It meets RoHS3 compliance and is REACH unaffected.
The circuit breaker is rated for 240VAC and 60VDC.
It is panel mounted with rocker actuation.
The operating temperature range is -10°C to 55°C.
Conditional short circuit capacity is 1 kA at 240VAC per IEC 60934. Additional capacities: 10xIn or 300A depending on rated current and voltage.
The mechanical lifetime is 50,000 switching cycles.
Front side protection is IP40; with factory mounted protection cover it is IP54.
