| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

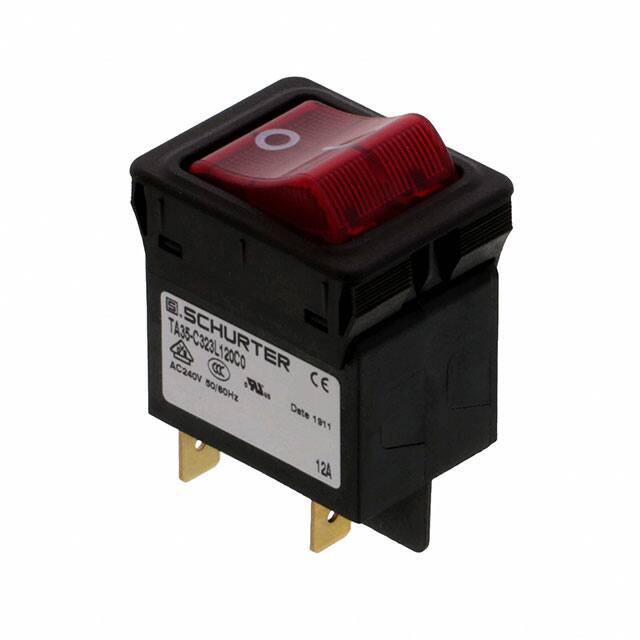

This Schurter 4435.0796 is a thermal circuit breaker designed for reliable circuit protection. It operates with a rated voltage of 240 VAC and 60 VDC, and features a current rating of 12A.
The breaker utilizes thermal-magnetic tripping for effective short-circuit protection. It is designed for panel mounting and has a rocker actuation type. The device is rated for a mechanical lifetime of 50,000 switching cycles.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC. Environmental specifications include a degree of protection of IP40 on the front side and an operating temperature range of -30 °C to 60 °C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
It is rated for 240 VAC and 60 VDC.
The continuous current rating is 12A, with a rated AC current range of 0.05-20 A (magnetic up to 16 A).
It is a 2-pole circuit breaker.
The operating temperature range is -30°C to 60°C.
It uses a thermal-magnetic tripping mechanism.
Dielectric strength is greater than 2.5 kV at 50 Hz and impulse withstand greater than 4 kV (1.2/50 μs).
The mechanical lifetime is 50,000 switching cycles.
