| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

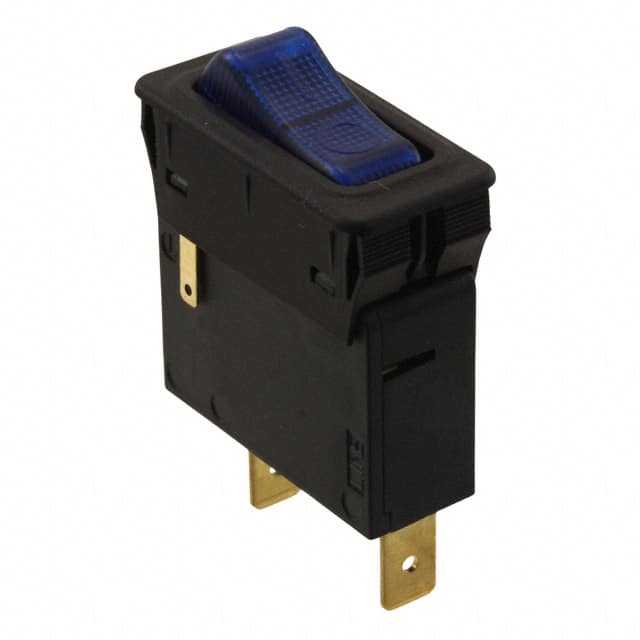

The Schurter Inc. 4435.0636 is a 1-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated AC voltage of 240 VAC and a rated DC voltage of 32 VDC, with a current rating range of 0.05 to 20 A.
This circuit breaker has a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 30,000 cycles AC and 50,000 cycles DC. It operates within an ambient temperature range of -30 °C to 60 °C. The device meets IP40 degree of protection on the front side and has approvals from CSA, EN, GB, IEC, and UL.
Applications for this thermal circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its compact design and reliable thermal tripping mechanism make it suitable for various industrial and commercial equipment.
The rated current range for AC is 0.05 - 20 A.
The rated voltage AC IEC is 240 VAC and the rated voltage UL/CSA is 277 VAC.
The rated voltage DC is 32 VDC.
The allowable operation temperature is -30 °C to 60 °C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
