| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

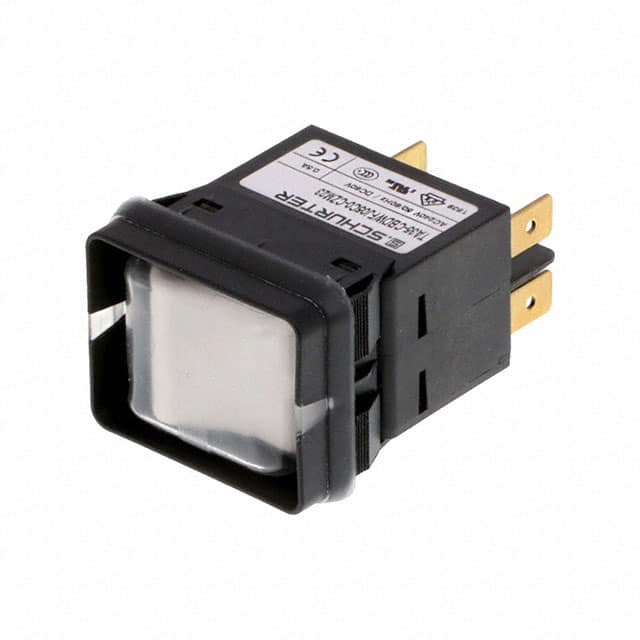

The Schurter Inc. 4435.0467 is a 2-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated current of 500mA and can handle AC voltages up to 240V and DC voltages up to 60V.
This circuit breaker provides thermal tripping and has a conditional short circuit capacity of 2 kA at 240 VAC. It operates within a temperature range of -30°C to 60°C and has a mechanical lifetime of 50,000 switching cycles.
Key specifications include a degree of protection of IP40 on the front side, dielectric strength greater than 2.5 kV, and impulse dielectric strength greater than 4 kV. The insulation resistance is rated at over 100 MΩ at 500 VDC.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It is designed for reliability and durability in industrial environments.
240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
-30 °C to 60 °C.
500 mA.
2 poles.
Thermal-magnetic tripping.
Panel mount.
50,000 switching cycles.
