| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

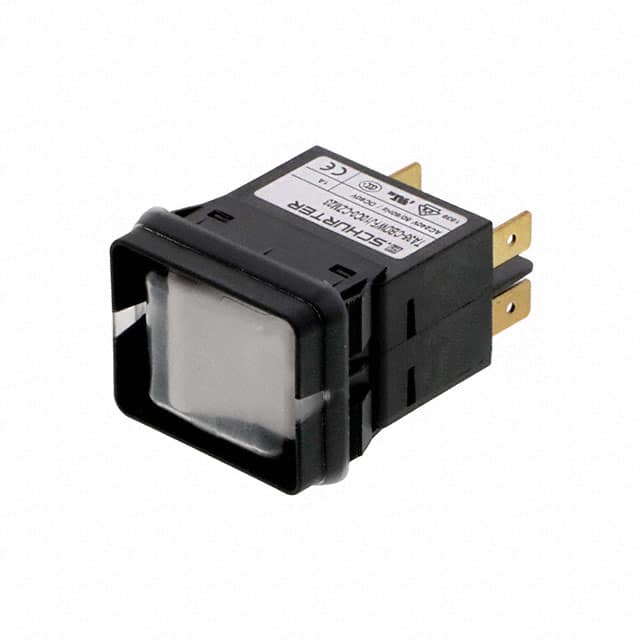

The Schurter Inc. 4435.0465 is a 2-pole thermal circuit breaker with a rocker actuation type. It is designed for panel mounting and offers a rated current range of 0.05 to 20A AC, with a specific 1A rating noted in the product data. The device operates at up to 240 VAC and 60 VDC.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC. It boasts a mechanical lifetime of 50,000 switching cycles and meets specific overload trip requirements for both IEC and UL/CSA standards.
Environmental and mechanical data indicate an operating temperature range of -30°C to 60°C and vibration resistance up to 10 G. The front side offers IP40 protection.
This circuit breaker is suitable for various applications including power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The Schurter 4435.0465 is rated for 240 VAC (IEC) and 277 VAC (UL/CSA), as well as 60 VDC.
The allowable operating temperature range is -30°C to 60°C.
The front side is rated IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV at 50 Hz.
