| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

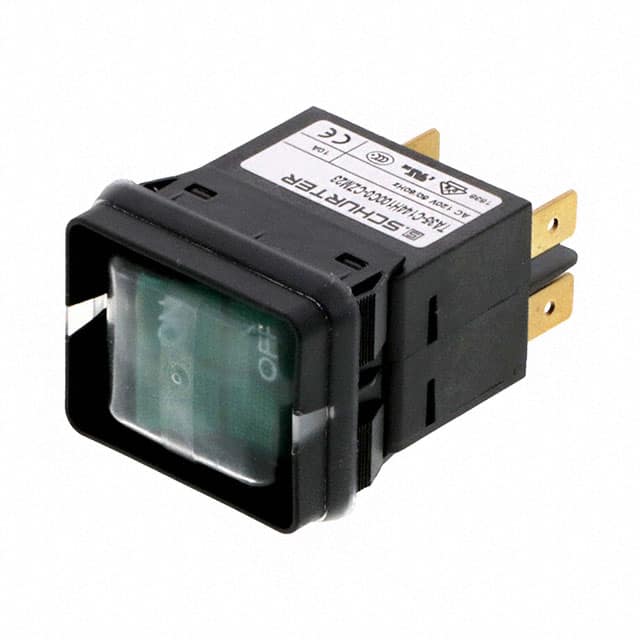

The Schurter Inc. 4435.0422 is a 2-pole thermal circuit breaker with a rocker actuation type. It is designed for panel mounting and offers a current rating of 10A and a voltage rating of 240VAC.
This circuit breaker operates on thermal tripping principles and has a conditional short circuit capacity of 2 kA at 240 VAC. It is rated for a mechanical lifetime of 50,000 switching cycles and operates within a temperature range of -30°C to 60°C.
Key specifications include a DC voltage rating of 60VDC, an insulation resistance of over 100 MΩ at 500VDC, and a dielectric strength of over 2.5 kV at 50 Hz. The degree of protection on the front side is IP40.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated voltage is 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC rating of 60 VDC.
The current rating is 10A.
This circuit breaker has 2 poles.
The allowable operation temperature is -30°C to 60°C.
It uses rocker actuation.
The degree of protection on the front side is IP40.
The tripping type is Thermal-Magnetic.
