| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Industrial Grade | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

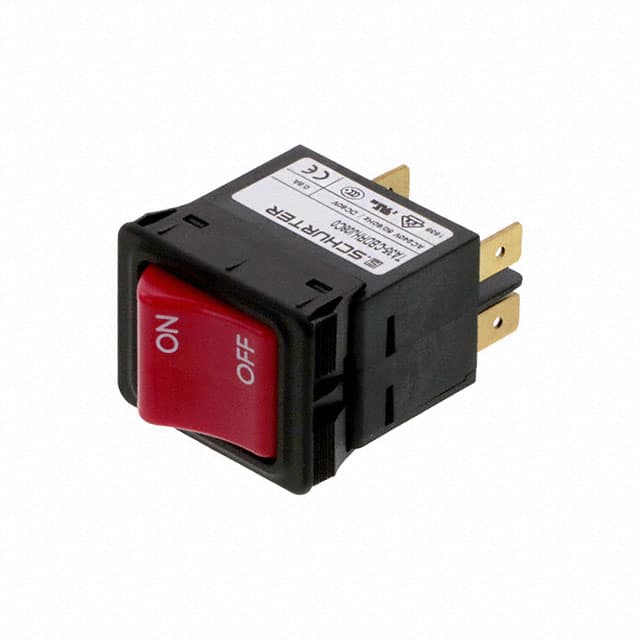

The Schurter Inc. 4435.0419 is a thermal circuit breaker from the TA35 series, designed for reliable circuit protection in various applications. This 2-pole device offers a rated current of 800mA and can handle voltages up to 240 VAC or 60 VDC. It features a rocker actuation type and is designed for panel mounting.
With a thermal tripping mechanism, this circuit breaker provides protection against overloads. It has a mechanical lifetime of 50,000 switching cycles and an AC electrical lifetime of 50,000 cycles at 1 x Ir with a power factor of 0.6. The device operates within a temperature range of -30 °C to 60 °C.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC, dielectric strength of over 2.5 kV, and insulation resistance greater than 100 MΩ at 500 VDC. The front side offers IP40 protection according to IEC 60529.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust design and reliable performance make it suitable for demanding industrial environments.
240 VAC and 60 VDC.
Bulk packaging.
-30°C to 60°C.
Thermal.
2 poles.
Panel mount.
50,000 switching cycles.
