| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

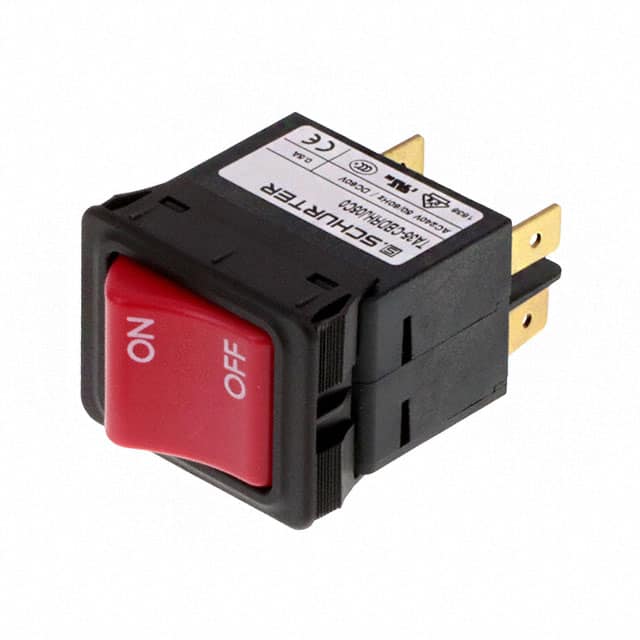

This Schurter Inc. 4435.0418 is a thermal circuit breaker from the TA35 series, designed for reliable circuit protection in various applications. It is a 2-pole device with a rocker actuator, suitable for panel mounting.
The breaker offers a current rating of 500mA and a voltage rating of 240VAC, with a DC voltage rating of 60VDC. It provides thermal tripping for overload protection and has a conditional short circuit capacity of 2 kA at 240 VAC.
Key specifications include a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C. The front side offers IP40 protection.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated current is 500mA.
It is rated for 240 VAC and 60 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
It is a panel mount device.
The front side has an IP40 degree of protection.
It has 2 poles.
It has a mechanical lifetime of 50,000 switching cycles.
