| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

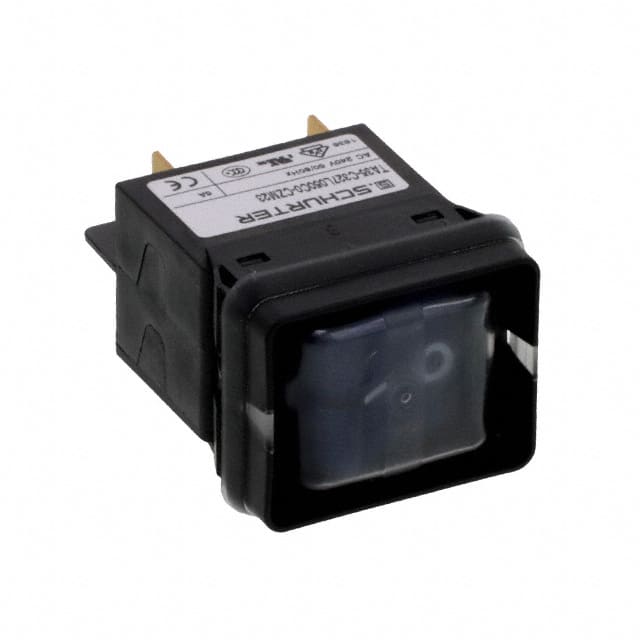

The Schurter Inc. 4435.0401 is a 2-pole thermal circuit breaker designed for reliable circuit protection in various industrial applications. It features a rocker actuation type and a panel mount configuration, making it suitable for integration into control panels and equipment.
This circuit breaker offers a rated AC voltage of 240 VAC (277 VAC UL/CSA) and a DC voltage rating of 60 VDC. The current rating ranges from 0.05A to 20A AC, with a magnetic trip capability up to 16A. It provides a conditional short circuit capacity of 2 kA at 240 VAC.
Key specifications include a thermal tripping type, an operating temperature range of -30°C to 60°C, and a mechanical lifetime of 50,000 switching cycles. The degree of protection on the front side is IP40. Applications include power tools, medical equipment, industrial appliances, and construction equipment.
Additional features include a blue illumination with a nominal voltage of 240V. The device is RoHS3 compliant, has an MSL of 1, and is REACH unaffected, though these compliance statuses are based on data with low confidence.
The 4435.0401 is rated at 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
The allowable operating temperature is -30°C to +60°C.
The front side is rated IP40 per IEC 60529.
Dielectric strength is >2.5kV at 50Hz and >4kV for a 1.2/50μs impulse.
The mechanical lifetime is 50,000 switching cycles.
The breaker is panel mounted.
