| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

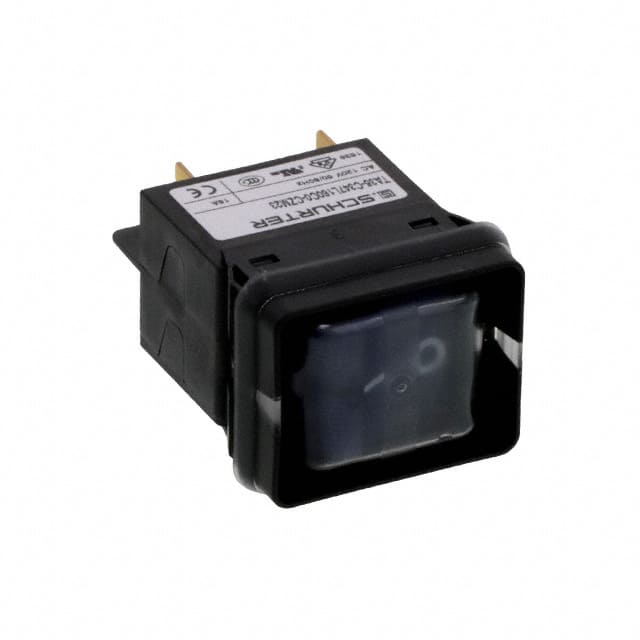

The Schurter Inc. 4435.0399 is a 2-pole thermal circuit breaker suitable for panel mounting. It offers a rated current of 16A and a voltage rating of 240V AC, with a DC rating of 60V.
This circuit breaker operates within a temperature range of -30°C to 60°C and has a mechanical lifetime of 50,000 switching cycles. It provides a conditional short circuit capacity of 2 kA at 240 VAC.
Key specifications include a dielectric strength of over 2.5 kV and an insulation resistance greater than 100 MΩ. The tripping type is thermal, with thermal-magnetic options available. The actuation is via a rocker.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
16A.
-30°C to 60°C.
-40°C to 60°C.
Rocker actuator.
50,000 switching cycles.
Panel mount.
