| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Allowable Operation Temperature | |
| Breaker Type | |
| Conditional Short Circuit Capacity Inc | |
| Current Rating (Amps) | |
| Degree of Protection | |
| Dielectric Strength | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Mechanical Lifetime | |
| Medical Grade | |
| Mounting Type | |
| Number of Poles | |
| Rated Current Range AC | |
| Shock Resistance | |
| Storage Temperature | |
| Vibration Resistance | |
| Voltage Rating | |
| Voltage Rating AC | |
| Voltage Rating DC | |
| Weight | |
| electrical_lifetime (Nominal @ AC, 1 x Ir, cos φ 0.6) | |
| electrical_lifetime (Nominal @ DC, 1 x Ir, L/R = 2 - 3 ms) | |
| overload_trips (Minimum @ IEC, 6 x Ir, cos φ 0.6) | |
| overload_trips (Minimum @ UL/CSA, 1.5 x Ir, cos φ 0.75) |

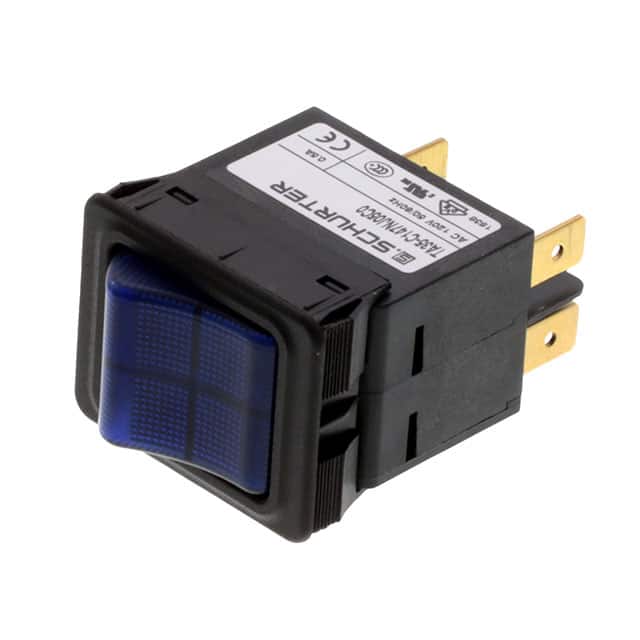

The Schurter 4435.0393 is a 2-pole thermal circuit breaker from the TA35 series, designed for equipment protection. It is rated at 500 mA with a voltage rating of 240 VAC (IEC) / 277 VAC (UL/CSA) and 60 VDC. The breaker features a blue illuminated rocker actuator and is panel mounted via snap-in.
Key electrical characteristics include a dielectric strength greater than 2.5 kV, insulation resistance above 100 MΩ, and a conditional short-circuit capacity of 2 kA at 240 VAC per IEC 60934. The device offers a mechanical lifetime of 50,000 switching cycles and an electrical lifetime of 50,000 cycles under both AC and DC conditions.
The circuit breaker operates over a temperature range of -30 °C to 60 °C and can be stored between -40 °C and 60 °C. It provides IP40 protection on the front side, with an optional cover for IP65. The unit weighs 32 g and is suitable for use in power tools, medical equipment, industrial appliances, and commercial kitchen appliances.
| Qty | Low | High |
|---|---|---|
| 1+ | $34.82 | $34.82 |
| 5+ | $28.88 | $28.88 |
| 10+ | $26.65 | $26.65 |
| 50+ | $22.07 | $22.07 |
| 100+ | $20.57 | $20.57 |
| 250+ | $19.41 | $19.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 500 mA.
It is rated for 240 VAC (IEC) / 277 VAC (UL/CSA) and 60 VDC.
The allowable operating temperature is -30 °C to 60 °C.
RoHS status is listed as RoHS3 Compliant, but this is unverified low-confidence data.
