| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

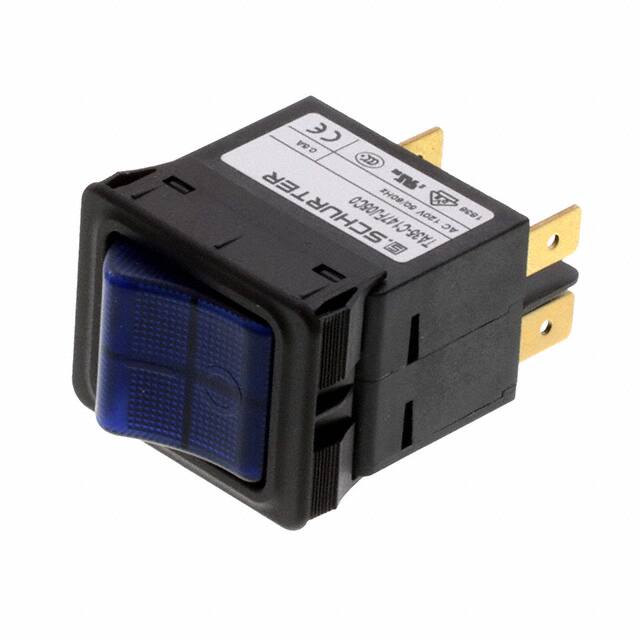

This Schurter Inc. 4435.0391 is a thermal circuit breaker from the TA35 series, featuring a 2-pole configuration and a rocker actuator for panel mounting. It is rated for 500mA and operates at 240 VAC or 60 VDC.
The circuit breaker offers thermal tripping and is suitable for applications requiring reliable short-circuit protection. Its robust design includes a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C.
Key specifications include a dielectric strength of over 2.5 kV and an insulation resistance greater than 100 MΩ. The device is designed for industrial environments and various equipment applications.
Applications include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The circuit breaker is rated for 240VAC (IEC) and 277VAC (UL/CSA) and 60VDC.
-30°C to 60°C.
Panel mount.
500mA.
50,000 switching cycles.
IP40.
Rocker.
