| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Package / Case | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

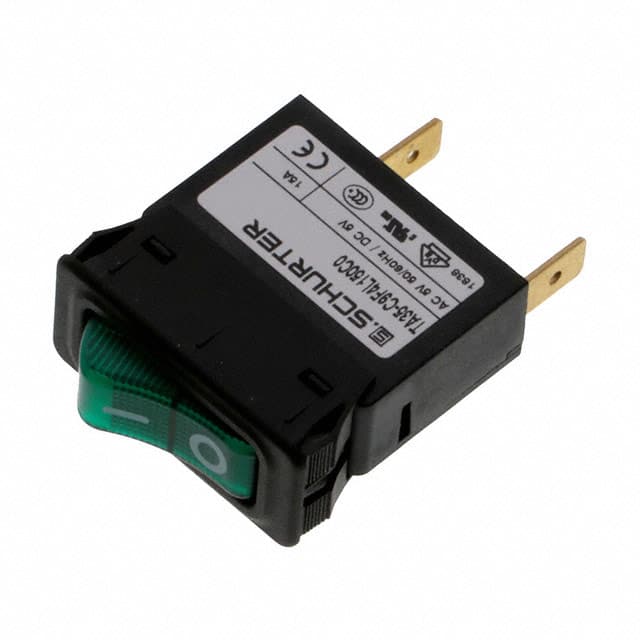

The Schurter Inc. 4435.0379 is a 1-pole thermal circuit breaker designed for equipment protection. It offers a rated AC voltage of 240 VAC (UL/CSA rated at 277 VAC) and a DC voltage rating of 32 VDC. The current rating is 15A, with a rated current range of 0.05 to 20A.
This circuit breaker features a thermal tripping type and a rocker actuator for operation. It has a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 30,000 cycles AC and 50,000 cycles DC. The operating temperature range is -30 °C to 60 °C.
Designed for panel mounting, the 4435.0379 has a green illumination with a nominal voltage of 5V. It meets IP40 protection on the front side and has a dielectric strength of > 2.5 kV at 50 Hz and > 4 kV for impulse.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, construction equipment, cleaning equipment, and commercial/household kitchen appliances.
The circuit breaker is rated for 240 VAC (IEC) and 277 VAC (UL/CSA) for AC, and 32 VDC for DC.
Panel mount.
-30°C to 60°C.
The circuit breaker is rated for 15A, with an AC current range of 0.05-20A.
Yes, it has a green illuminated rocker actuator with a nominal voltage of 5V.
50,000 switching cycles.
IP40 on the front side.
