| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

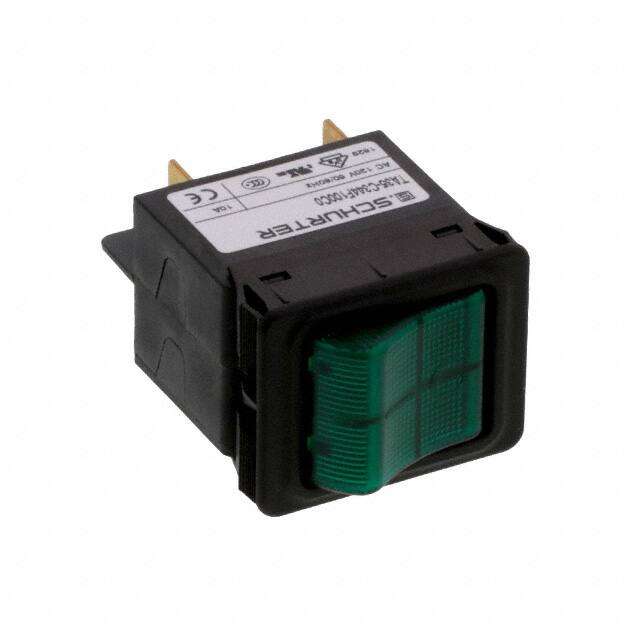

The Schurter Inc. 4435.0371 is a 2-pole thermal circuit breaker featuring rocker actuation and a panel mount design. It offers a rated current of 10A and operates at 240 VAC / 60 VDC.
This circuit breaker is suitable for various applications including power tools, medical and laboratory equipment, industrial appliances, and construction equipment. It provides thermal tripping and has a mechanical lifetime of 50,000 switching cycles.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC, an operating temperature range of -30 °C to 60 °C, and an IP40 degree of protection on the front side. The device is designed for reliable short-circuit protection with its thermal-magnetic release mechanism.
The rated voltage is 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC rating of 60 VDC.
The rated current range is 0.05 to 20 A AC, with a magnetic trip rating up to 16 A.
This circuit breaker features rocker actuation.
The circuit breaker has 2 poles.
The allowable operating temperature is from -30 °C to 60 °C.
