| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

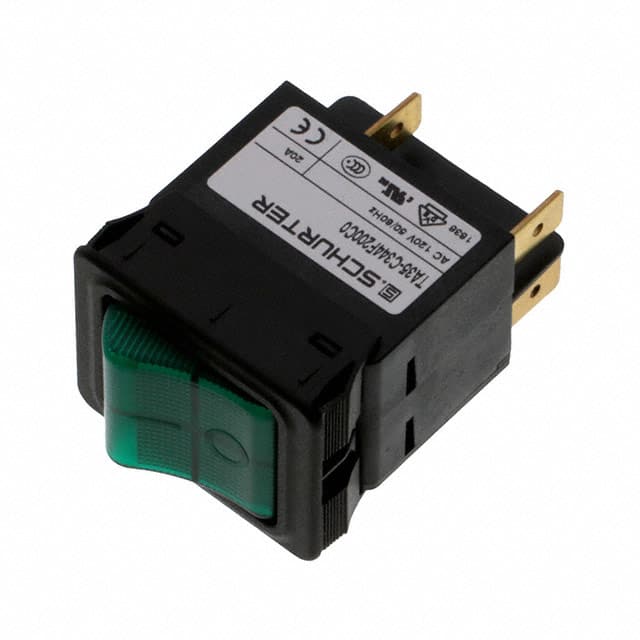

The Schurter Inc. 4435.0364 is a 2-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated current range of 0.05 to 20A AC and a rated voltage of 240 VAC or 60 VDC.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC and a dielectric strength of over 2.5 kV at 50 Hz. The breaker has a mechanical lifetime of 50,000 switching cycles and operates within a temperature range of -30°C to 60°C.
This circuit breaker is designed for applications such as power tools, medical and laboratory equipment, industrial appliances, and equipment for construction. It provides thermal tripping and is available with non-illuminated or illuminated rocker options.
Environmental specifications include a front-side degree of protection of IP40. The product is listed with RoHS3 compliance, MSL 1, and REACH unaffected status, though these are currently unverified.
The Schurter 4435.0364 is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
Panel mount.
-30°C to 60°C.
0.05 to 20 A AC, with magnetic up to 16 A.
Greater than 2.5 kV at 50 Hz and greater than 4 kV impulse (1.2/50 μs).
50,000 switching cycles.
Rocker actuator with green illumination at 120V nominal.
