| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Storage Temperature | |
| Voltage Rating |

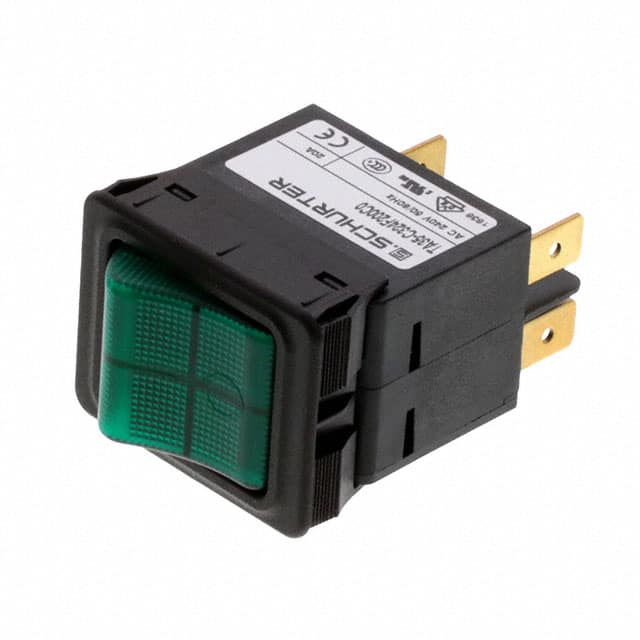

The Schurter Inc. 4435.0363 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 20A and operates at up to 240 VAC or 60 VDC. The breaker features a thermal-magnetic tripping type and a rocker actuation for ease of use.
With a panel mount design, this circuit breaker is suitable for various industrial applications. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30 °C to 60 °C. The front side offers IP40 protection according to IEC 60529.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC. It also meets specific overload trip requirements for both IEC and UL/CSA standards. The insulation resistance is rated at over 100 MΩ at 500 VDC, and it withstands a dielectric strength of greater than 2.5 kV at 50 Hz.
This Schurter circuit breaker is designed for applications requiring robust protection, such as in power tools, medical equipment, and industrial appliances. Its configurability, including options for illumination, makes it a versatile choice for demanding environments.
The rated AC voltage is 240 VAC (IEC) and 277 VAC (UL/CSA).
The rated DC voltage is 60 VDC.
The AC current rating range is 0.05 to 20 A, with a magnetic rating up to 16 A.
The allowable operating temperature is -30 °C to 60 °C.
The tripping type is Thermal-Magnetic.
This circuit breaker has 2 poles.
The mounting type is Panel Mount.
