| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

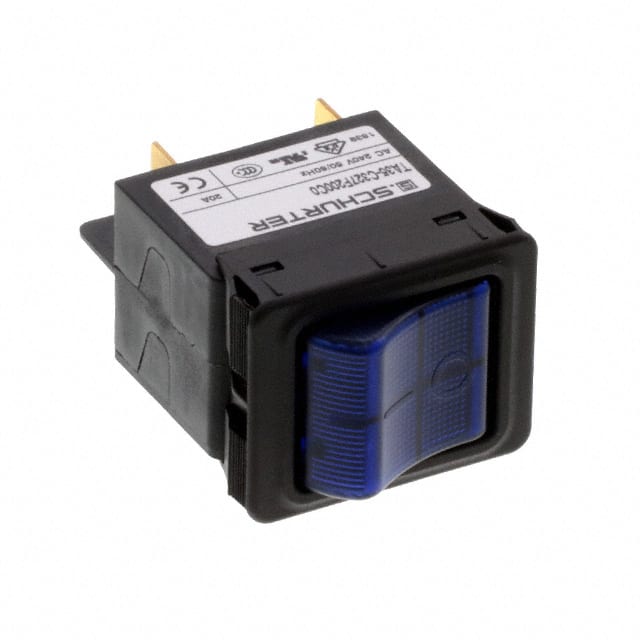

This Schurter Inc. 4435.0349 is a 2-pole thermal circuit breaker with a rocker actuation type, suitable for panel mounting. It offers a rated current of 20A and a voltage rating of 240 VAC, with a DC rating of 60 VDC. The breaker has a conditional short circuit capacity of 2 kA at 240 VAC and an ingress protection rating of IP40 on the front side.
Key electrical specifications include a dielectric strength of over 2.5 kV and an impulse dielectric strength of over 4 kV. The insulation resistance is greater than 100 MΩ at 500 VDC. Mechanical lifetime is rated for 50,000 switching cycles, with AC and DC operational lifetimes also at 50,000 cycles under specific conditions.
Environmental considerations include an operating temperature range of -30 °C to 60 °C and a storage temperature range of -40 °C to 60 °C. The device also meets vibration resistance standards per IEC 60068-2-6 and shock resistance standards per IEC 60068-2-27.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated voltage is 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC rating of 60 VDC.
The rated current range is 0.05 to 20 A AC, with a magnetic trip up to 16 A.
The allowable operating temperature is from -30 °C to 60 °C.
Yes, the RoHS status is RoHS3 Compliant.
