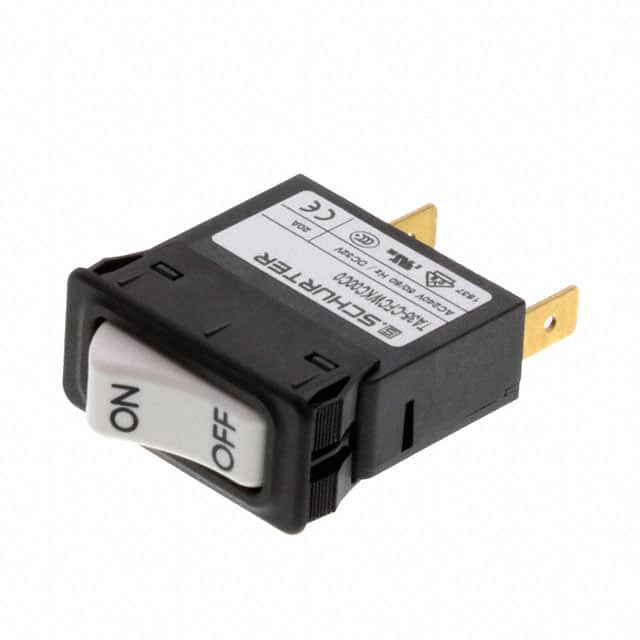

The Schurter Inc. 4435.0344 is a 1-pole thermal circuit breaker designed for equipment protection. It features a rocker actuation type and a panel mount for easy integration into various systems.
This circuit breaker operates with a rated AC voltage of 240 VAC according to IEC standards and 277 VAC according to UL/CSA standards, along with a DC voltage rating of 32 VDC. The current rating range is from 0.05 A to 20 A. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
Key specifications include a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30 °C to 60 °C. The degree of protection on the front side is IP40.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, equipment for construction, cleaning equipment, and commercial and household kitchen appliances.
The rated AC voltage is 240 VAC according to IEC standards and 277 VAC according to UL/CSA standards.
The DC voltage rating is 32 VDC.
The allowable operating temperature range is -30 °C to 60 °C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
