| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

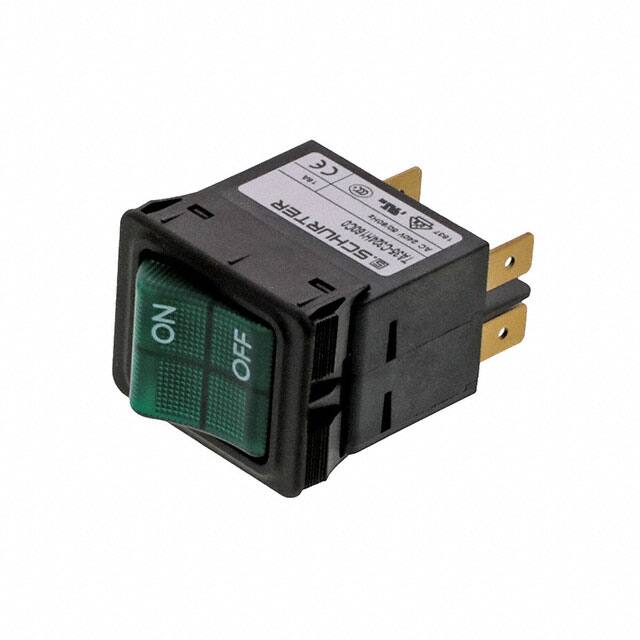

The Schurter Inc. 4435.0341 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 16A and a voltage rating of 240 VAC (277 VAC UL/CSA) and 60 VDC.
This circuit breaker utilizes thermal tripping and features a rocker actuation type. It has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30 °C to 60 °C. The device is suitable for panel mounting.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC and an insulation resistance greater than 100 MΩ at 500 VDC. The degree of protection on the front side is IP40.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The breaker is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
Panel mount.
-30 °C to 60 °C.
The rated current range is 0.05 to 20 A AC, with magnetic trip up to 16 A.
Greater than 2.5 kV at 50 Hz and greater than 4 kV impulse.
Minimum 50,000 switching cycles.
IP40 on the front side.
