| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

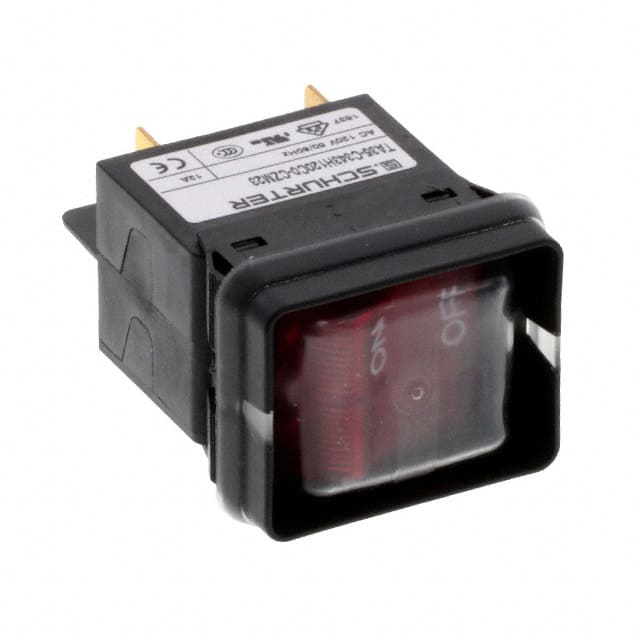

The Schurter Inc. 4435.0335 is a thermal circuit breaker designed for equipment protection. It features a 2-pole configuration with a rocker actuation type and a panel mount design.
This circuit breaker has a rated current of 12A and a rated voltage of 240 VAC, with a DC voltage rating of 60 VDC. It offers a conditional short circuit capacity of 2 kA at 240 VAC. The device operates within an allowable temperature range of -30 °C to 60 °C.
Key specifications include a mechanical lifetime of 50,000 switching cycles, dielectric strength of over 2.5 kV, and insulation resistance greater than 100 MΩ. The degree of protection on the front side is IP40.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated current range AC is 0.05 - 20 A, with a specific rating of 12A for this model.
The rated voltage AC IEC is 240 VAC and UL/CSA is 277 VAC.
The rated voltage DC is 60 VDC.
This circuit breaker has 2 poles.
The actuation type is Rocker.
The allowable operation temperature is -30 °C to 60 °C.
The RoHS status is RoHS3 Compliant.
