| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

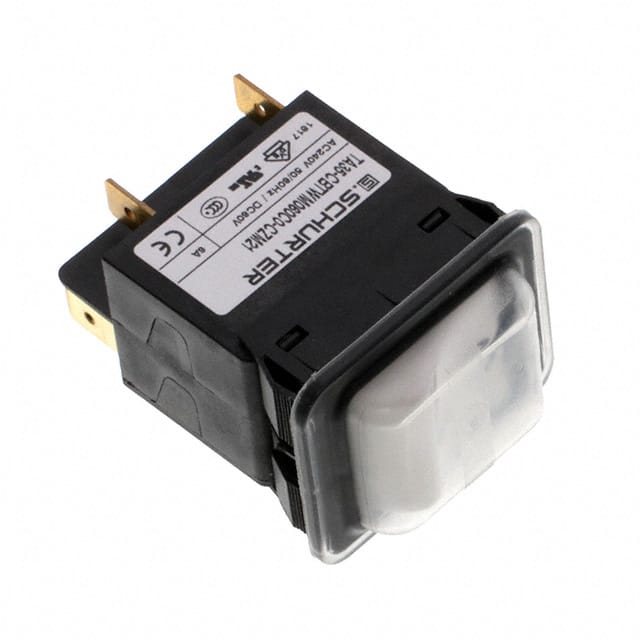

This Schurter Inc. 4435.0332 is a thermal circuit breaker designed for reliable circuit protection in various applications. It is a 2-pole device with a rocker actuator, suitable for panel mounting.
The circuit breaker has a rated current of 6A and can handle AC voltages up to 240V and DC voltages up to 60V. It offers a conditional short-circuit capacity of 2 kA at 240 VAC. The device operates within a temperature range of -30°C to 60°C.
Key specifications include a mechanical lifetime of 50,000 switching cycles and overload protection compliant with IEC standards. The ingress protection rating for the front side is IP40.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated voltage is 240 VAC (IEC) and 277 VAC (UL/CSA) for AC, and 60 VDC for DC.
The allowable operating temperature range is -30 °C to 60 °C.
The degree of protection is IP40 according to IEC 60529.
The mechanical lifetime is 50,000 switching cycles.
The dielectric strength is greater than 2.5 kV.
