| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

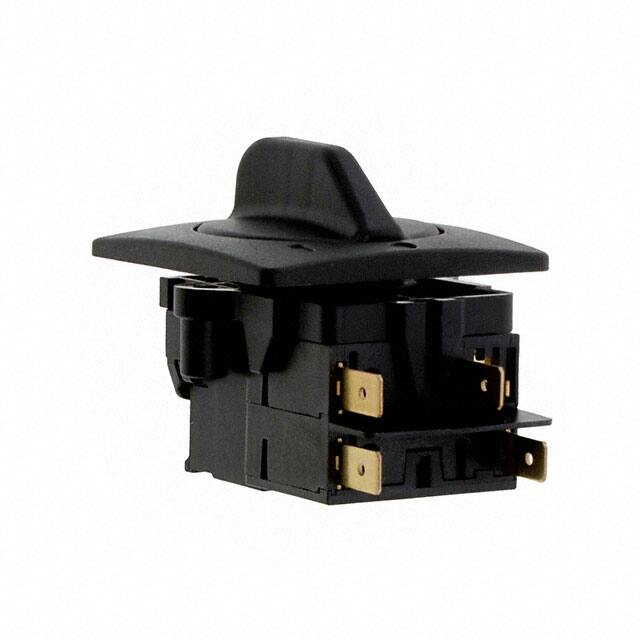

The Schurter Inc. 4435.0326 is a 2-pole thermal circuit breaker designed for supplementary protection in general industrial applications. It features a rotary knob for actuation and a positively trip-free release mechanism, operating according to IEC S-type standards.
Key electrical specifications include a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA), and 60 VDC. The rated current range is from 0.05 to 20 A, with a conditional short circuit capacity of 2 kA at 240 VAC. The breaker offers a mechanical lifetime of 50,000 switching cycles.
Environmental and mechanical data include an operating temperature range of -30 °C to 60 °C, IP40 degree of protection on the front side, and resistance to vibration and shock. The unit is designed for panel mounting and has a weight of 60 g.
Applications for this circuit breaker include power tools, industrial appliances, construction equipment, cleaning equipment, and commercial/household kitchen appliances. It is available without a bezel/knob for customized front panel designs.
The rated voltage is 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC rating of 60 VDC.
The rated current is 1A, with a range of 0.05 to 20 A for AC applications.
This circuit breaker has 2 poles.
It uses rotary knob actuation.
The allowable operating temperature is from -30 °C to 60 °C.
The mechanical lifetime is 50,000 switching cycles.
