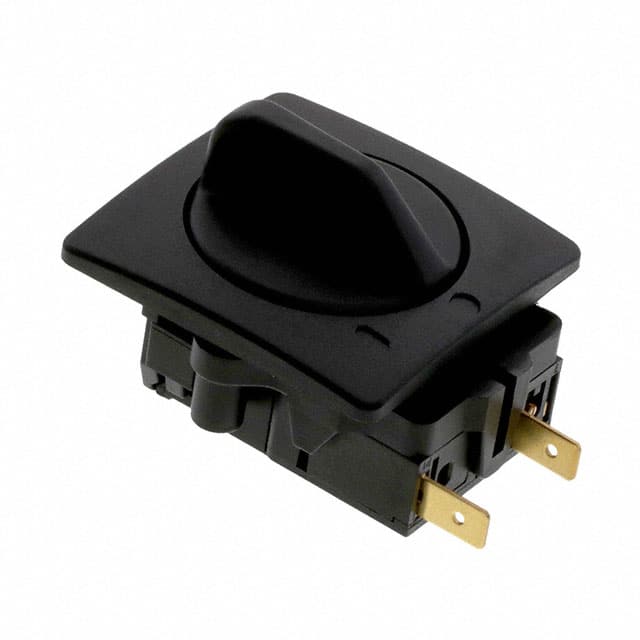

The Schurter Inc. 4435.0324 is a thermal circuit breaker designed for supplementary protection in general industrial use. This 1-pole device features a positively trip-free release mechanism and rotary knob actuation for easy operation, even with gloves.
Key electrical specifications include a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA), and 32 VDC. The rated current range is from 0.05 to 20 A, with a conditional short circuit capacity of 2 kA at 240 VAC. The breaker offers a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 50,000 cycles for both AC and DC operations.
Environmental and mechanical specifications include a degree of protection of IP40 on the front side, dielectric strength greater than 2.5 kV, and insulation resistance greater than 100 MΩ. The operating temperature range is -30 °C to 60 °C. The device is designed for panel mounting and has a weight of 45 g.
Applications for this circuit breaker include power tools, industrial appliances, construction equipment, cleaning equipment, and commercial/household kitchen appliances. It is available without a bezel/knob for customized front panel designs.
The rated voltage is 240 VAC (IEC) and 277 VAC (UL/CSA), with a DC rating of 32 VDC.
The rated current range is from 0.05 A to 20 A.
The allowable operating temperature is from -30 °C to 60 °C.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
The REACH status is REACH Unaffected.
