| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

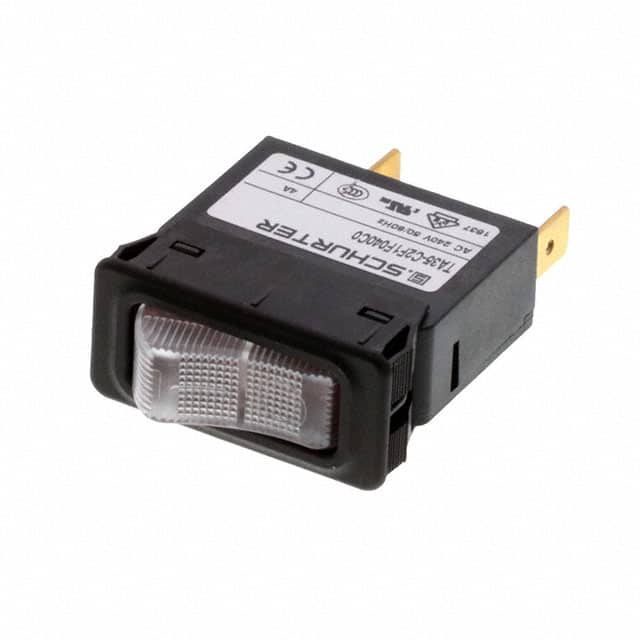

The Schurter Inc. 4435.0323 is a single-pole thermal circuit breaker suitable for panel mounting. It offers a rated AC voltage of 240 VAC and a DC voltage rating of 32 VDC. The current rating ranges from 0.05 to 20 A, with this specific model rated at 4A.
This circuit breaker features a rocker actuation type and a thermal tripping mechanism. It has a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 30,000 cycles at AC and 50,000 cycles at DC. The operating temperature range is -30 °C to 60 °C.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and cleaning equipment. Its robust design and thermal protection make it suitable for various industrial and commercial applications.
It is rated for 240VAC (IEC) and 277VAC (UL/CSA), and 32VDC.
-30°C to 60°C.
Panel mount.
Thermal.
50,000 switching cycles.
Greater than 2.5 kV at 50 Hz and greater than 4 kV impulse.
2 kA at 240 VAC.
