| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating |

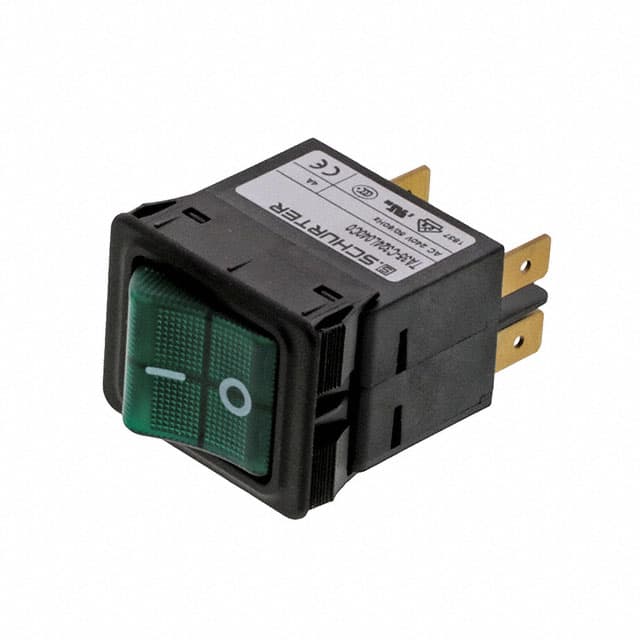

The Schurter Inc. 4435.0316 is a thermal circuit breaker designed for equipment protection. This 2-pole device offers a rated current of 4A and operates at up to 240 VAC or 60 VDC. It features a rocker actuation type and is designed for panel mounting.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC and a degree of protection of IP40 on the front side. The circuit breaker has a mechanical lifetime of 50,000 switching cycles and an operating temperature range of -30°C to 60°C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its thermal tripping mechanism provides reliable protection against overloads.
The rated voltage is 240 VAC (IEC) and 277 VAC (UL/CSA), and 60 VDC.
The rated current range is 0.05 to 20 A AC, with a magnetic rating up to 16 A.
This circuit breaker has 2 poles.
The allowable operating temperature is from -30 °C to 60 °C.
Yes, it is RoHS3 Compliant.
