| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

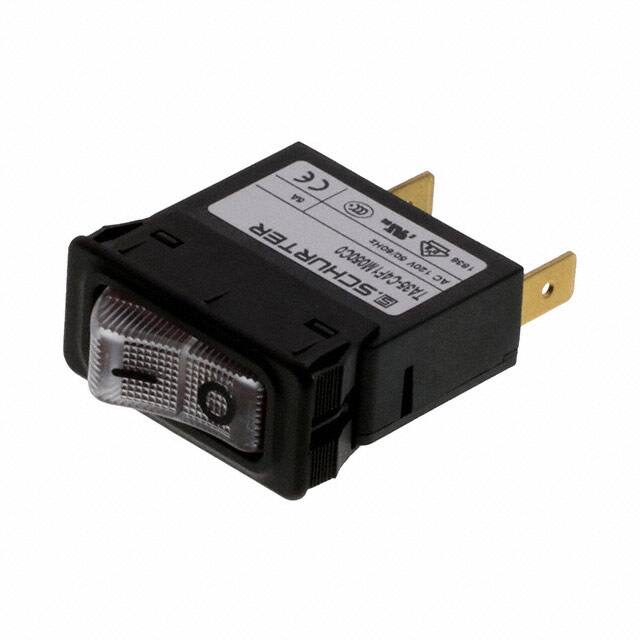

The Schurter Inc. 4435.0312 is a 1-pole thermal circuit breaker designed for reliable overcurrent protection. It features a rocker actuation type and a panel mount design, making it suitable for various industrial and commercial applications.
This circuit breaker operates with a rated voltage of 240 VAC (IEC) or 277 VAC (UL/CSA) and 32 VDC. The current rating ranges from 0.05A to 20A, with this specific model rated at 5A. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
Environmental and mechanical specifications include an IP40 degree of protection on the front side, a wide operating temperature range of -30°C to 60°C, and a mechanical lifetime of 50,000 switching cycles. The device is built to withstand vibration and shock according to IEC standards.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust design and thermal tripping mechanism ensure dependable performance in demanding environments.
Rated voltages: 240 VAC (IEC), 277 VAC (UL/CSA), and 32 VDC.
The rated current is 5A for this specific part number.
-30 to 60 °C.
Panel mount.
Thermal tripping.
Greater than 2.5 kV at 50 Hz and greater than 4 kV impulse. Insulation resistance is greater than 100 MΩ.
50,000 switching cycles mechanical; 30,000 cycles under AC load and 50,000 under DC.
