| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

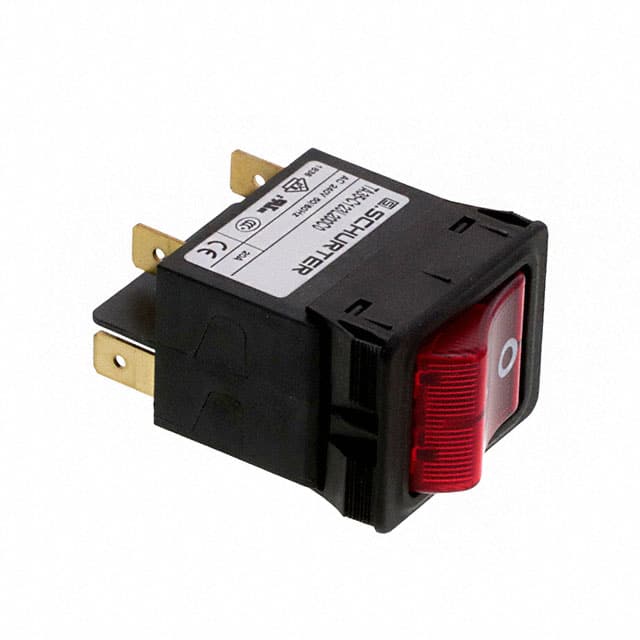

The Schurter Inc. 4435.0311 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a current rating of 20A and a voltage rating of 240 VAC, with a DC rating of 60 VDC. The breaker features a rocker actuation type and a panel mount design for easy integration into equipment.
This circuit breaker operates thermally and has a tripping type of thermal-magnetic. It boasts a mechanical lifetime of 50,000 switching cycles and an AC lifetime of 50,000 switching cycles at 1x Ir, cos φ 0.6. The conditional short circuit capacity is 2 kA at 240 VAC.
Environmental specifications include a degree of protection of IP40. The allowable operating temperature range is -30 °C to 60 °C, with a storage temperature range of -40 °C to 60 °C. Vibration resistance is tested to IEC 60068-2-6, and shock resistance is tested to IEC 60068-2-27.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, equipment for construction, cleaning equipment, and commercial and household kitchen appliances.
The circuit breaker is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 60 VDC.
The allowable operating temperature is -30 °C to 60 °C.
It is a panel mount device.
It has 2 poles.
Yes, it has a red illumination with nominal voltage of 240V.
It uses a thermal tripping mechanism (also available as thermal-magnetic).
