| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

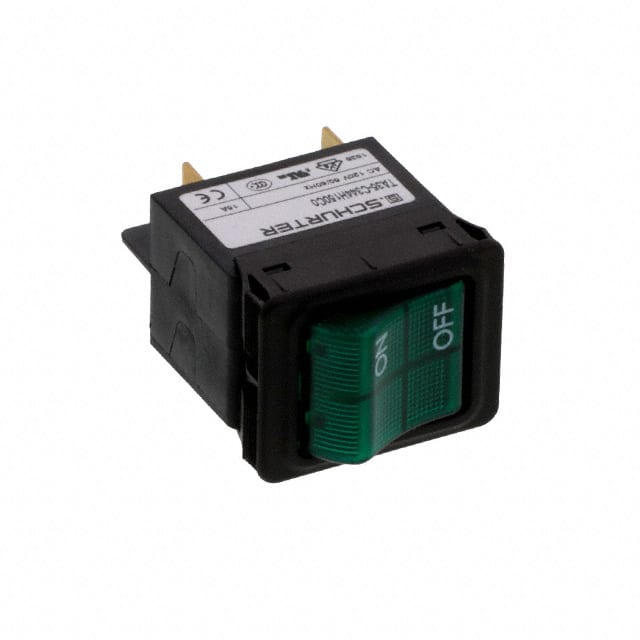

The Schurter Inc. 4435.0307 is a 2-pole thermal circuit breaker with a rocker actuation type. It offers a rated current of 15A and is suitable for AC applications up to 240 VAC and DC applications up to 60 VDC.
This circuit breaker features a thermal tripping mechanism and a green illumination indicator. It has a mechanical lifetime of 50,000 switching cycles and an AC electrical lifetime of 50,000 cycles at 1x Ir, cos φ 0.6. The IEC overload rating is a minimum of 40 trips at 6x Ir, cos φ 0.6, while the UL/CSA rating is a minimum of 50 trips at 1.5x Ir, cos φ 0.75.
Designed for panel mounting, the 4435.0307 operates within an ambient temperature range of -30°C to 60°C. Its vibration resistance is specified as ± 0.75 mm @ 10 - 60 Hz and 10 G @ 60 - 500 Hz, with shock resistance at 30 G / 18 ms.
Key specifications include a conditional short circuit capacity of 2 kA at 240 VAC and a degree of protection on the front side of IP40. The dielectric strength is rated at > 2.5 kV (50 Hz) and > 4 kV (1.2/50 μs impulse), with an insulation resistance of > 100 MΩ at 500 VDC.
It is rated for 240VAC (IEC), 277VAC (UL/CSA), and 60VDC.
-30°C to 60°C.
15A continuous.
Thermal and thermal-magnetic.
2 poles.
Rocker actuator with green illumination.
50,000 cycles.
