| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

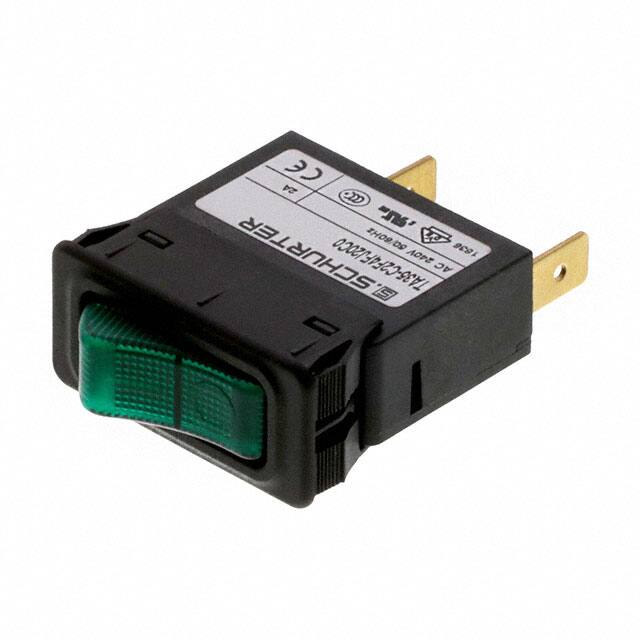

This Schurter Inc. 4435.0296 is a 1-pole thermal circuit breaker featuring rocker actuation and a panel mount design. It offers a wide rated current range from 0.05 to 20A AC, with this specific unit rated at 2A. The breaker supports a maximum AC voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), and a DC voltage of 32 VDC.
Key electrical specifications include a conditional short circuit capacity of 2 kA at 240 VAC. The device has a mechanical lifetime of 50,000 switching cycles and electrical lifetimes of 30,000 cycles AC and 50,000 cycles DC. It operates within a temperature range of -30°C to 60°C.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. It provides positively trip-free release and has a degree of protection of IP40 on the front side.
The breaker is rated for 240 VAC (IEC), 277 VAC (UL/CSA), and 32 VDC.
Panel mount.
-30°C to 60°C.
2A.
1 pole.
Yes, green illumination at 240V.
Thermal.
