| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

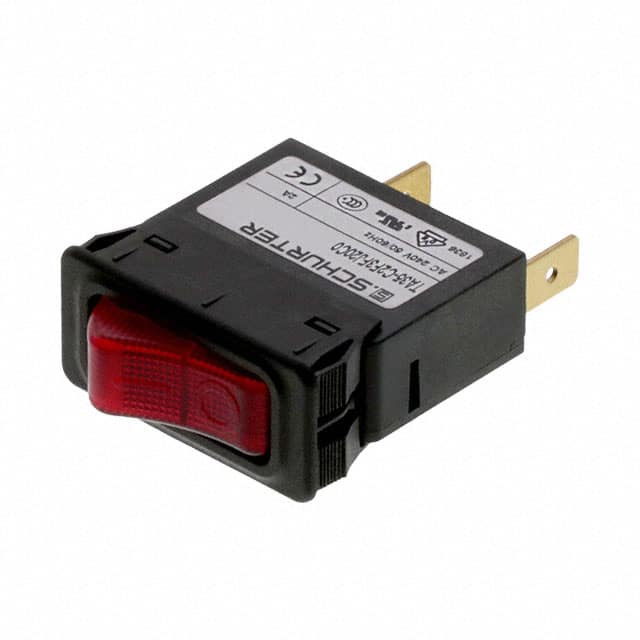

The Schurter Inc. 4435.0295 is a 1-pole thermal circuit breaker designed for reliable overcurrent protection. It features a rocker actuation type and a panel mount configuration, making it suitable for various industrial and commercial applications.
Key electrical specifications include a rated AC voltage of 240 VAC (IEC) and 277 VAC (UL/CSA), and a rated DC voltage of 32 VDC. The current rating ranges from 0.05 to 20 A, with this specific model rated at 2A. It offers a conditional short circuit capacity of 2 kA at 240 VAC.
This circuit breaker operates within an allowable temperature range of -30 °C to 60 °C and has a mechanical lifetime of 50,000 switching cycles. The degree of protection on the front side is IP40.
Applications for this type of circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances.
The rated AC voltage is 240 VAC according to IEC standards and 277 VAC according to UL/CSA standards.
The rated DC voltage is 32 VDC.
The rated current range AC is from 0.05 to 20 A.
The allowable operation temperature is from -30 °C to 60 °C.
The mechanical lifetime is 50,000 switching cycles.
The degree of protection on the front side is IP40.
It is a panel mount type.
