| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Illumination Voltage (Nominal) | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Storage Temperature | |
| Voltage Rating | |
| Weight |

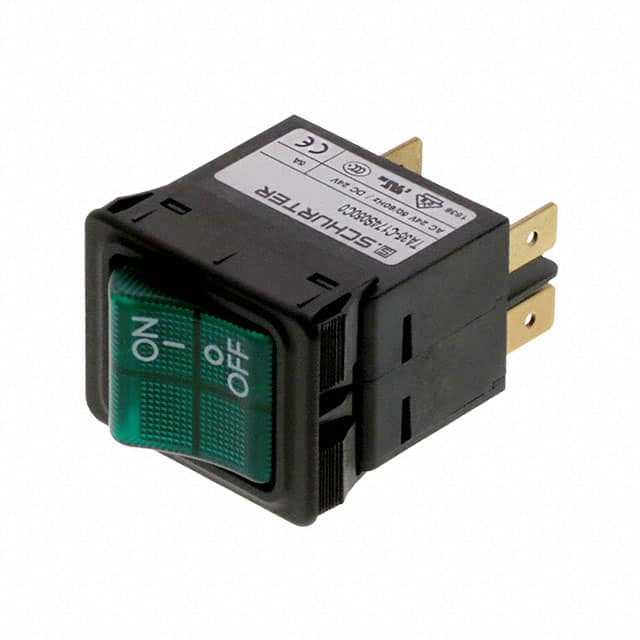

The Schurter Inc. 4435.0291 is a 2-pole thermal circuit breaker designed for reliable circuit protection. It offers a rated current of 5A and a voltage rating of 240 VAC, with a DC rating of 60 VDC. The breaker features a rocker actuation type and a panel mount design for easy integration into equipment.
This circuit breaker operates on thermal tripping principles and has a conditional short circuit capacity of 2 kA at 240 VAC. It is built to withstand a wide range of operating temperatures from -30 °C to 60 °C and has a mechanical lifetime of 50,000 switching cycles. The degree of protection on the front side is IP40.
Applications for this circuit breaker include power tools, medical and laboratory equipment, industrial appliances, and commercial kitchen appliances. Its robust construction and specific tripping characteristics make it suitable for demanding industrial environments.
The breaker is rated for 240VAC (IEC) and 277VAC (UL/CSA) alternating current, and 60VDC direct current.
Panel mount.
-30°C to 60°C.
IP40 according to IEC 60529.
50,000 switching cycles mechanical and electrical at rated load.
Rocker actuation.
Yes, with a green illumination at 24V nominal.
