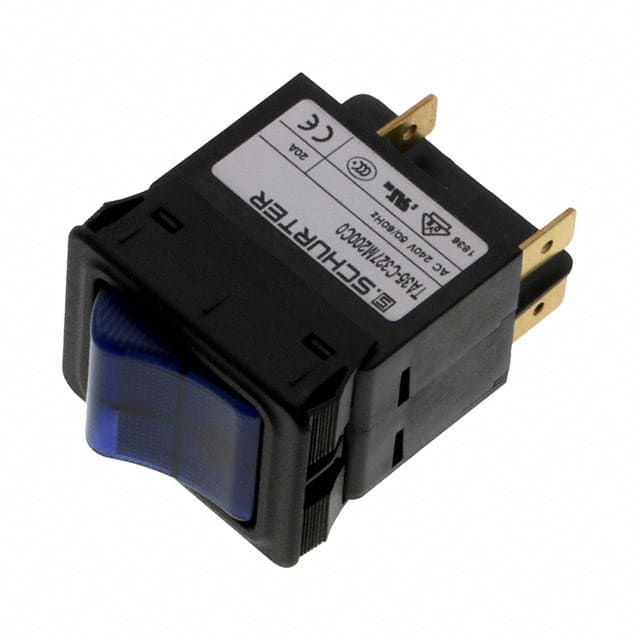

4435.0289 Thermal circuit breaker rated for 20A at 240VAC and 60VDC. Features 2kA short circuit capacity and IP40 front protection.
Mfr Part #:

4435.0289

Mfr Name: Schurter Inc.
Schurter Inc.
Thermal circuit breaker rated for 20A at 240VAC and 60VDC. Features 2kA short circuit capacity and IP40 front protection.
Stock on Request

4435.0289 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating (Amps)
Illumination
Illumination Voltage (Nominal)
Mounting Type
Number of Poles
SVHC Present
Voltage Rating
View Similar Products (0)

4435.0289 Description

Short technical summary and product information.

This Schurter Inc. thermal circuit breaker (part number 4435.0289) is rated for a continuous current of 20A. It operates at a rated AC voltage of 240VAC (277VAC under UL/CSA conditions) and a DC voltage of 60VDC. The rated current range spans from 0.05A to 20A AC, with magnetic trip capability up to 16A. The conditional short circuit capacity is 2kA at 240VAC per IEC 60934. The front side of the circuit breaker is protected to IP40 according to IEC 60529. This component is suitable for overcurrent protection in a variety of applications including industrial control panels, power supplies, and automotive systems.

4435.0289 Quick Information

Product Type: Thermal Circuit Breaker
Canonical Name: Schurter Inc. Thermal Circuit Breaker 4435.0289
Subcategory: Thermal

4435.0289 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

4435.0289 Features

  • Rated 20A continuous current.
  • Operates at 240VAC or 60VDC.
  • Short circuit capacity 2kA at 240VAC.
  • IP40 front protection rating.
  • Magnetic trip up to 16A.

4435.0289 Applications

  • Used in power tools and industrial appliances
  • Suitable for medical and laboratory equipment
  • Applied in commercial kitchen appliances
  • Used in industrial lighting arrays
  • Protects cleaning and construction equipment

4435.0289 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage rating of this circuit breaker?

The circuit breaker is rated for 240VAC (277VAC under UL/CSA) and 60VDC.

What is the current rating range?

The rated current range is 0.05 to 20A AC, with magnetic trip up to 16A.

What is the short circuit capacity?

The conditional short circuit capacity is 2kA at 240VAC per IEC 60934.

What is the degree of protection?

The front side has IP40 protection according to IEC 60529.
